SmartLine element

CS 7152 FL

with two burners

sale price$3,300.00

GST inclusive



Product details

  • Simple controls -single-handed operation via rotary dial control
  • Elegant design – for flush or raised installation
  • Seamlessly integrates with any
    SmartLine element
  • Particularly versatile - 1 medium burner and 1 large burner
  • Easy cleaning - dishwasher-safe ComfortClean pot rests
  • Manufactured with great care by
  • Safety Information

Product data sheet

Heating type Gas
SmartLine
Elegant glass ceramic surface
Ceramic surface colour Black
Flush
Surface-mounted installation
Number of cooking zones 2
Position front centre
Type Standard burner
Size in mm Ø 120-220
Max. rating in W 1900
Position rear centre
Type High-speed burner
Size in mm Ø 140-260
Max. rating in W 3200
Operation via sensor controls Knob
Operation via knobs
Electronic ignition with single-hand operation
Easy to clean ceramic glass
Dishwasher-proof pot rests
GasStop
Dimensions (W x D) in mm 288 x 92 x 520
Dimensions in mm (width) 288
Dimensions in mm (height) 92
Dimensions in mm (depth) 520
Cut-out dimensions (W x D) with surface-mounted installation in mm 268 mm x 500 mm
Casing height incl. connection box in mm 92
Cutout dimensions in mm (width) with surface-mounted installation 268 mm
Cutout dimensions in mm (depth) with surface-mounted installation 500 mm
Internal cutout dimensions in mm (width) with flush installation 268
Internal cutout dimensions in mm (depth) with flush installation 500
External cutout dimensions in mm (width) with flush installation 292
External cutout dimensions in mm (depth) with flush installation 524
Weight in kg 7
Total rated load in kW 5.400
Voltage in V 230
Frequency in Hz 50-60
Length of supply lead in m 1.4
Mains cable
EAN 4002516720706

What's included

Mains cable

Maintenance

Efficiently protects and makes cleaning easier
ComfortClean pot rests

Fast cleaning: remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.


User convenience

Easy ignition of the flame
Electronic ignition with single-handed operation

No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.


Safety

Flame failure monitor for maximum safety
GasStop

Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.


Design

Design in detail
Metal knobs

Perfect convenience: the gas elements can be intuitively operated via high-quality metal knobs.


Downloads

Operating instructions/Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads
dwg
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000021/200002157/20000215752.png
Descriptions

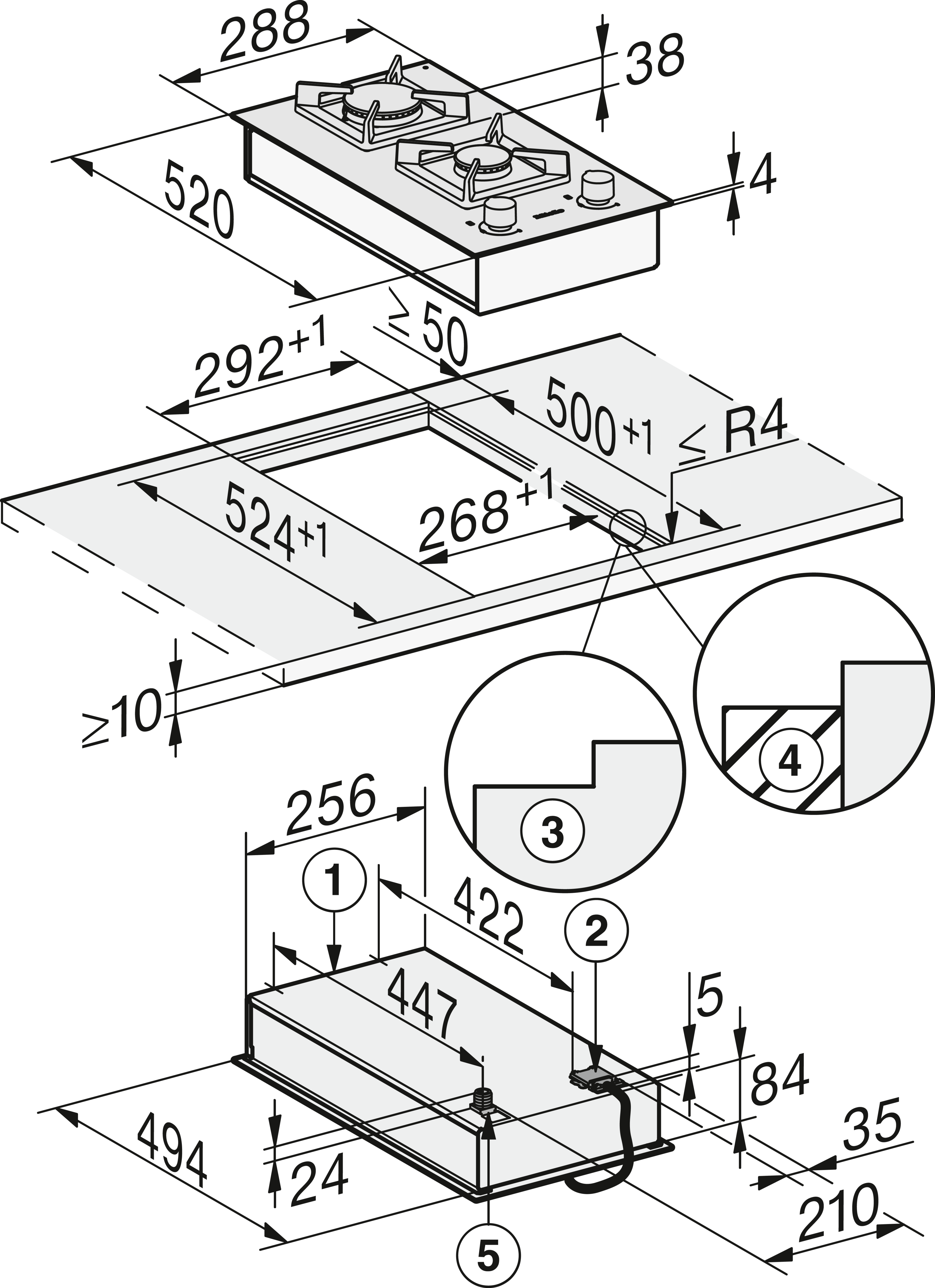

CS7152FL, CS7152-1FL flush - installation drawing
1) Front, 2) Mains connection box with mains connection cable, L = 2000 mm, 3) Stepped cut-out, 4) Wooden strip (not supplied, for detailed drawings see chapter “Worktop cut-out for flush installation”), 5) Gas connection 1/2 - ISO 7-1 (DIN EN 10226)
Downloads
https://media.miele.com/images/2000021/200002157/20000215751.png
Descriptions

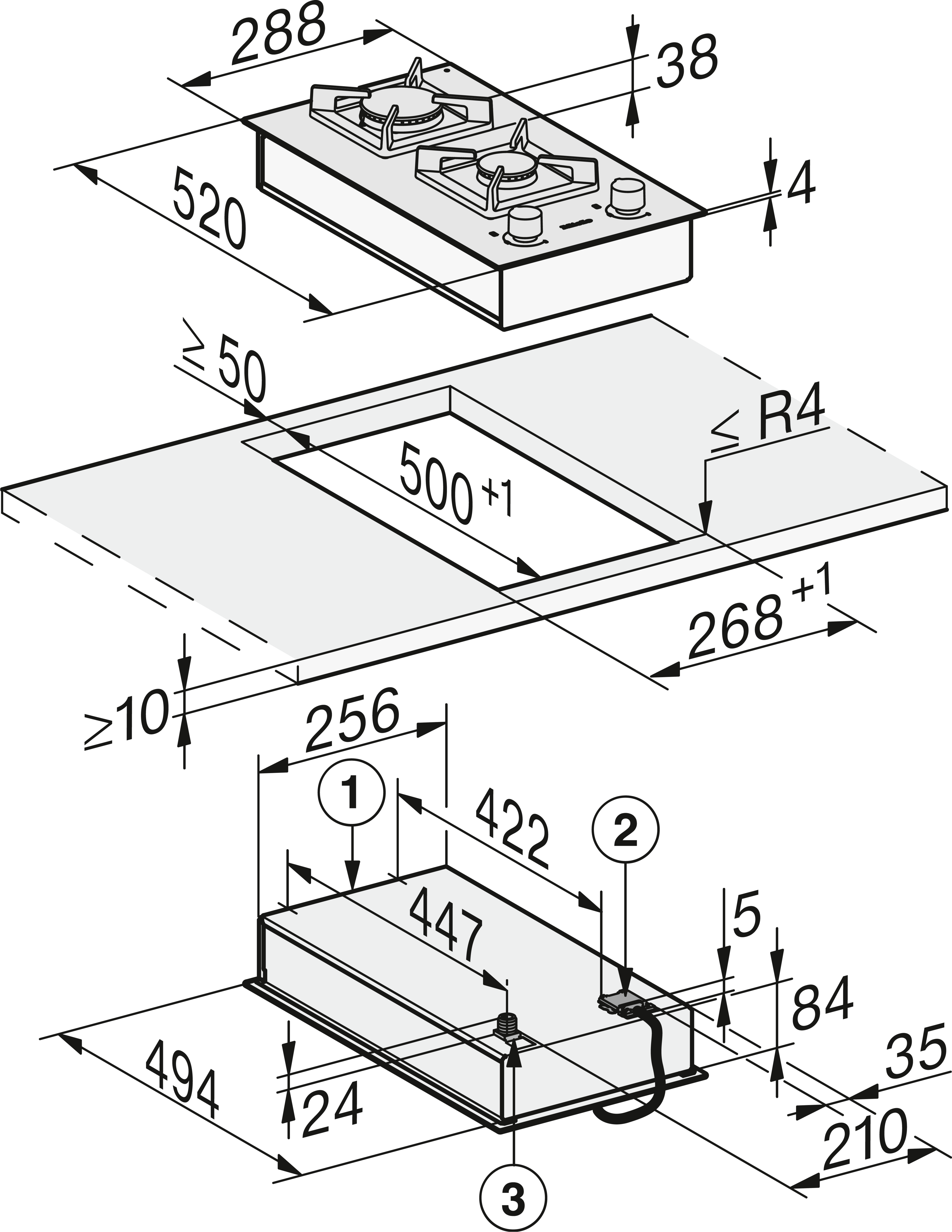

CS7152FL, CS7152-1FL overlaying - installation drawing
1) Front, 2) Mains connection box with mains connection cable, L = 2000 mm, 3) Gas connection 1/2 - ISO 7-1 (DIN EN 10226)
Downloads
  • 1.GST inclusive

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
