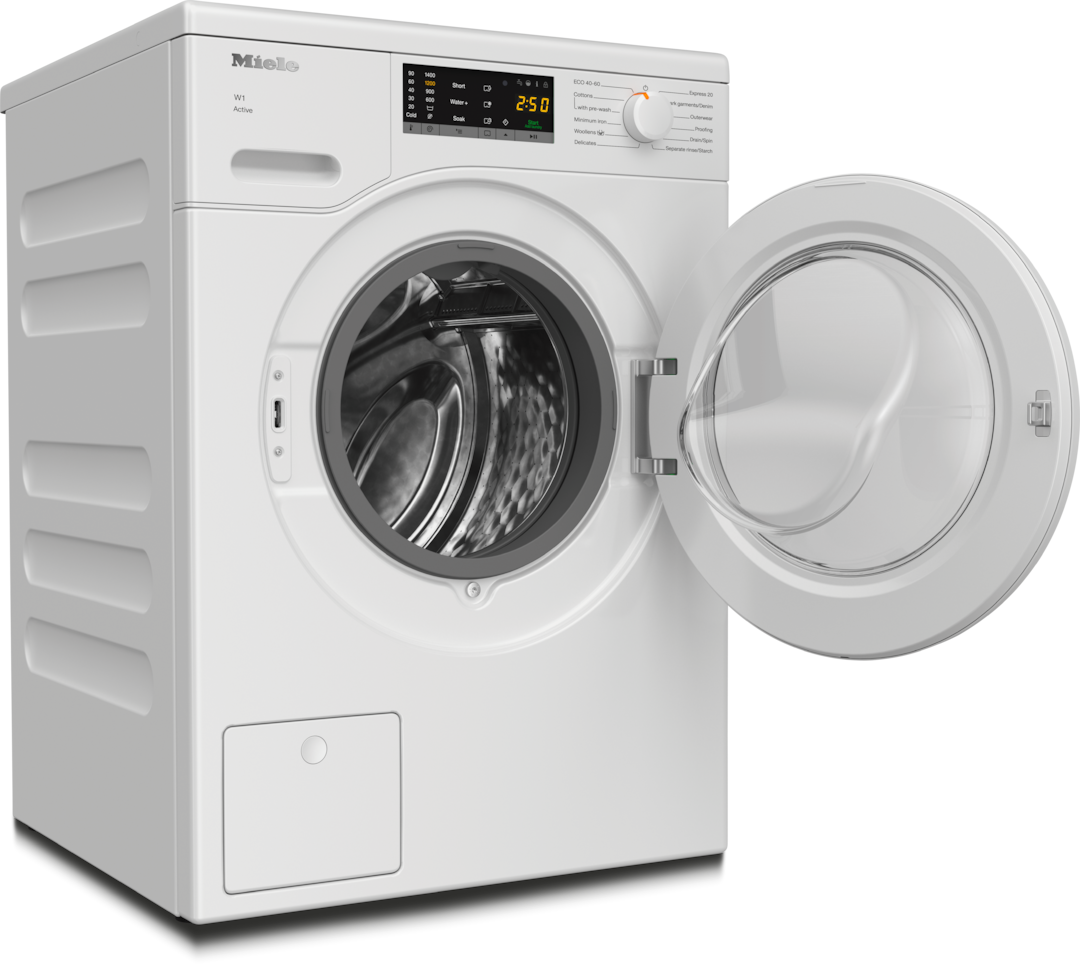

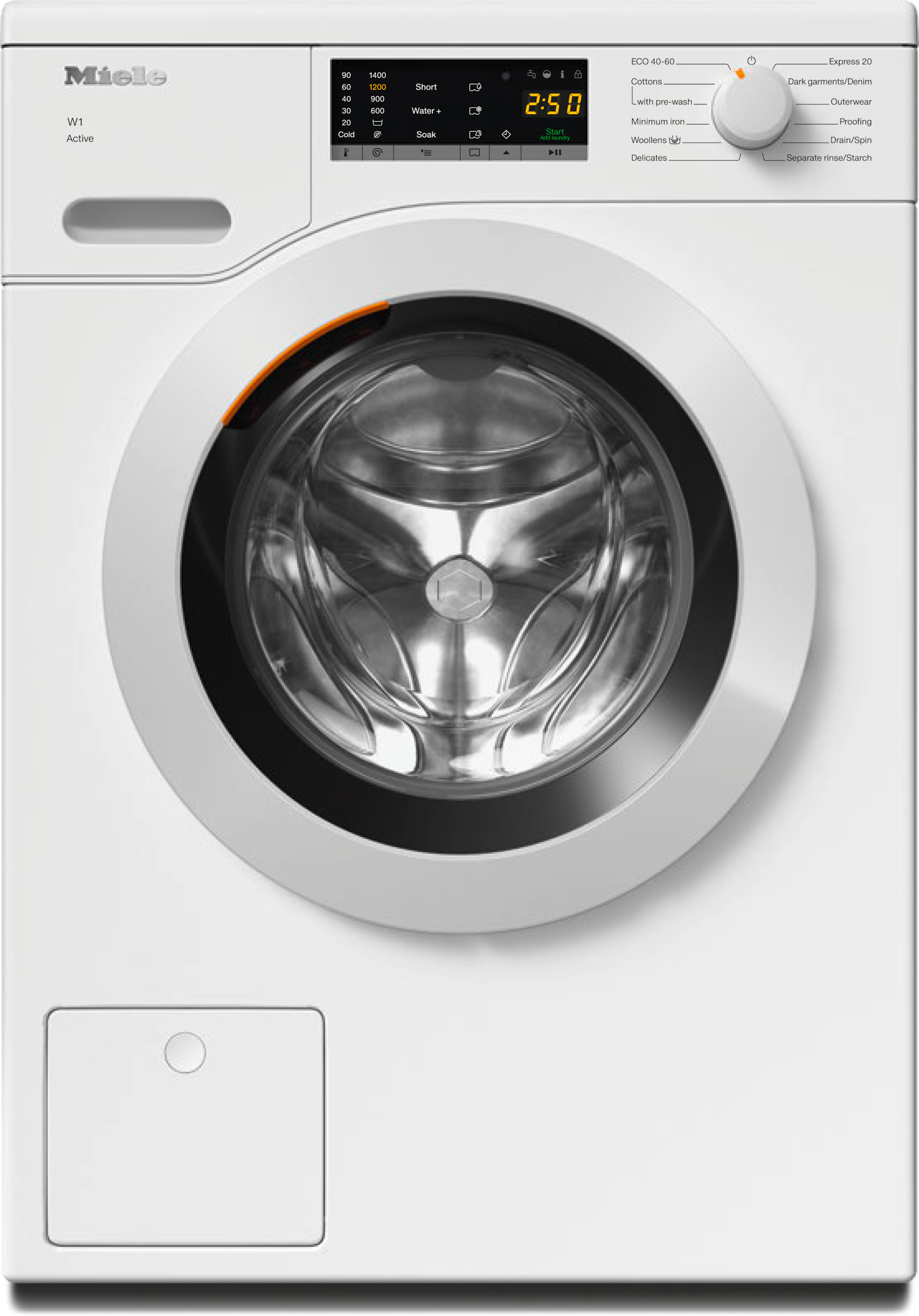

W1 front-loader washing machine:

WCA020 WCS Active

B I 7 kg I 1400 rpm I CapDosing I honeycomb drum I AddLoad
sale price$1,799.00
1

GST inclusive



Product details

  • Tested for
    20 years
    of perfect laundry care4,
  • Exclusive
    CapDosing
    range for different fabrics and stains2,
  • Our
    honeycomb drum
    ensures that laundry stays in perfect condition
  • Add or remove individual items during the wash cycle with
    AddLoad
  • Freshen up laundry quickly with the
    Express 20
    programme
  • Manufactured with great care by
  • Safety Information

Product data sheet

Suitable for stacking
Side-by-side
Slot-in
Can be built-under
Door hinge right
Product brand W1 Chrome Edition
Front-loader
Max. spin speed 1400
Rinse hold
Without spin function
Appliance colour Lotus white
Control panel colour Lotus white
Door design Lotus white
Rotary selector colour Lotus White
Control panel version Straight
Control type Rotary control
Display EasyControl yellow
CapDosing portioned dispensing
Honeycomb drum
Load in kg 7
Delay start up to 24 hours
Time left display
AutoClean detergent drawer
AddLoad
Low temperature wash "Cold" and "20 °C"
Automatic load control
Flow meter
Foam sensing
ProfiEco motor
Cottons (coloureds)
Cottons with pre-wash
Minimum iron
Delicates
Woollens (hand-washable)
Express 20
Dark garments / Denim
Outerwear
Proofing
Separate rinse/Starch
Drain / Spin
ECO 40-60
Short
Soak
Water plus
Additional rinse cycle
Water protection system Watercontrol-System
Safety lock
PIN-Code
Optical interface
Dimensions in mm (width) 596
Dimensions (H x W x D) in mm 850 x 596 x 636
Dimensions in mm (height) 850
Dimensions in mm (depth) 636
Appliance depth in mm with opened door 1054
Appliance depth w/o door in mm 600
Weight in kg 80
Total rated load in kW 2.100-2.400
Voltage in V 220-240
Fuse rating in A 13
Frequency in Hz 50
Length of water inlet hose in m 1.60
Length of water drain hose in m 1.50
Length of supply lead in m 2
EAN 4002516400585
Tested for 20 years of perfect laundry care4,
Tested for the equivalent of 20 years’ use4,

Some car engines are subjected to 3000 hours of tests, but we test continuous performance for up to 10,000 hours.4,

Always the right detergent for every application
CapDosing portioned dispensing2,

Our portioned caps are available with a range of specialised detergents tailored to match your wash programmes.

Cleaning performance

Always the right detergent for every application
CapDosing portioned dispensing2,

Our portioned caps are available with a range of specialised detergents tailored to match your wash programmes.

Washing programs

Most gentle treatment of your favourite garments
Woollens

No shrinkage, no felting: Delicate wool fabrics are cared for particularly gently, maintaining their quality.

Equip textiles with functions
Proofing

Best possible effect: Thermally fixing ensures optimum water-repellent properties.

Optimum care of synthetic fibres
Delicates

Gentle & soft: with the special programme synthetic textiles stay beautiful & keep their shape.

Special programme for high-tech materials
Outerwear

Best care without the loss of function: High-quality outdoor textiles retain their functionality in any weather.

Efficiency and sustainability

Tailored to your load
Automatic load recognition

Use precisely the water and energy needed for your laundry with automatic load recognition.

Economical, powerful and maintenance-free
ProfiEco motor3,

Our efficient motors with inverter drive feature technology that ensures minimal wear, noise, and energy usage.

Gentle laundry care

Keep your clothing safe while tumbling
Honeycomb drum

Our protective drum allows fabrics to safely glide along without snagging and damaging them.

User convenience

Add or remove single items
AddLoad

Enjoy the flexibility to add or remove individual items during a washing cycle, without cancelling the programme.

Safety

Safety thanks to an additional sensor
Water Control System (WCS)

WCS monitors the water intake, detects leakages and water in the floor tray.

Quality

Tested for 20 years of perfect laundry care4,
Tested for the equivalent of 20 years’ use4,

Some car engines are subjected to 3000 hours of tests, but we test continuous performance for up to 10,000 hours.4,

Matching products and accessories

Building-under kit
UBS W1/G

Building-under kit

Built-under W1 washing machines & WT1 washer-dryers with straight control panel.

$143.00
Washer-dryer stacking kit
WTV 502

Washer-dryer stacking kit

For space-saving and safe installation of a washer-dryer stack.

$159.00
Washer-dryer stacking kit
WTV 511

Washer-dryer stacking kit

with an integrated drawer for a particularly convenient washer-dryer stack.

$588.00
Washer-dryer stacking kit
WTV 501

Washer-dryer stacking kit

For space-saving and safe installation of a washer-dryer stack.

$159.00
WoolCare caps
WA CWC 0902 L

WoolCare caps

9-pack wool and delicates detergent. EasyOpen.

$19.00
CottonRepair caps
WA CCR 0302 L

CottonRepair caps

3-pack special-purpose detergent for cotton fabrics. EasyOpen.

$37.00
Multi-purpose microfibre cloth, qty 1
GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

$26.00
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$53.00
UltraColor Edition125 1.5 l
WA UCJ 1501 L

UltraColor Edition125 1.5 l

Limited Edition for Miele’s 125th anniversary.

$28.00
IntenseClean – 200 g machine cleaner
GP CL WG 252 P

IntenseClean – 200 g machine cleaner

For hygienic cleanliness in dishwashers and washing machines

$26.00

Downloads

User manual
PDF
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000018/200001839/20000183969.png
Descriptions
W1 drawing, slanted facia or straight facia, measures in mm
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001839/20000183968.png
Descriptions
W1 installation drawing, slanted facia or straight facia, measures in mm
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001839/20000183970.png
Descriptions
W1 drawing, slanted facia or straight facia, measures in mm
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001839/20000183971.png
Descriptions
W1 drawing, slanted facia or straight facia, measures in mm
Installation drawings
Downloads
  • 1.GST inclusive
  • 2.Patent EP 2 365 120
  • 3.Patent EP 2 840 679
  • 4.During the development phase of the W1 washing machine series, Miele tested models and core components in 5000 wash loads (= 5 wash loads per week for 50 weeks per year) in various programmes. More: miele.com/20years
