Gas hob

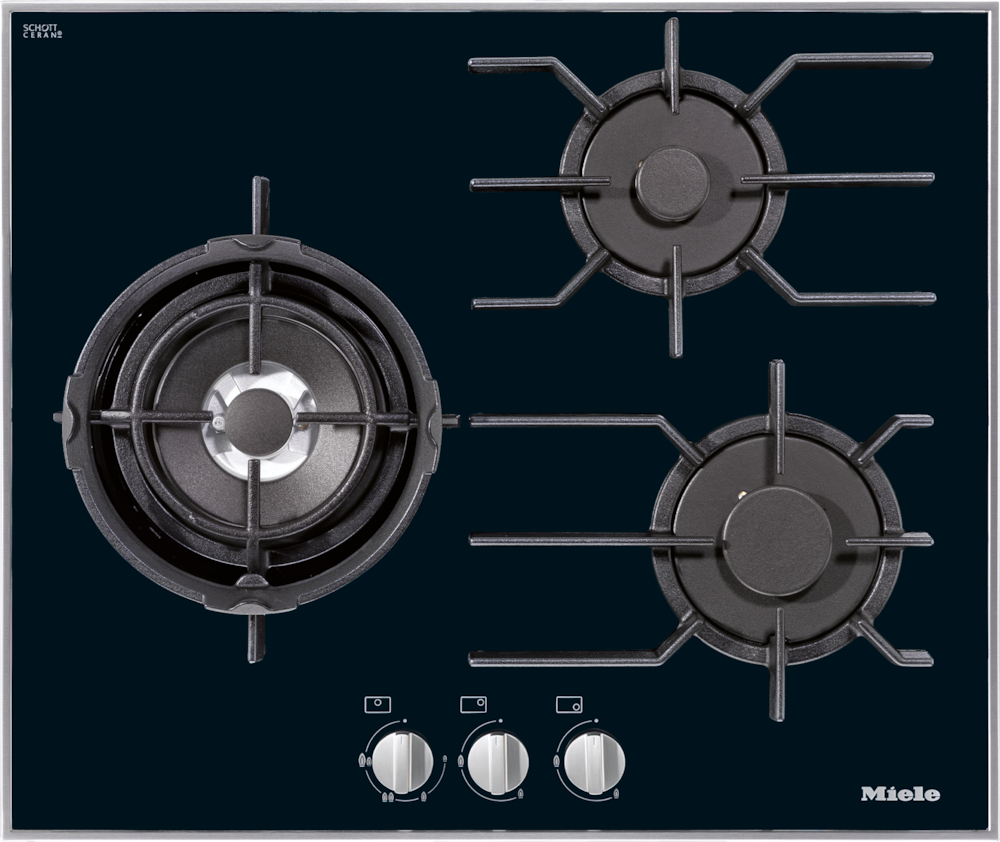

KM 3014 G

with 3 burners incl. dual wok for particularly versatile cooking convenience.

sale price$4,200.00

GST inclusive



Product details

  • Simple controls -single-handed operation via rotary dial control
  • Elegant design - 626 mm wide gas on glass hob
  • Particularly versatile - 3 burners incl. 1 dual wok
  • Extremely safe -
    GasStop function
  • Easy cleaning - dishwasher-safe ComfortClean pot rests
  • Manufactured with great care by
  • Safety Information

Product data sheet

Heating type Gas
Independent of cooker
Elegant glass ceramic surface
Cast iron pot rests (matt black enamelled)
Miele logo embossed in stainless steel
Number of cooking zones 3
Small burner in kW 1.30
Medium burner in kW 2
Dual wok burner in kW 4.90
Position left centre
Type Dual wok burner
Position rear right
Type Economy burner
Position front right
Type Standard burner
Operation via knobs
Electronic ignition with single-hand operation
Easy to clean ceramic glass
Dishwasher-proof pot rests
GasStop
GasStop & ReStart
Dimensions (H x W x D) in mm 53 x 626 x 526
Dimensions (W x D) in mm 626 x 53 x 526
Dimensions in mm (width) 626
Dimensions in mm (height) 53
Dimensions in mm (depth) 526
Cut-out dimensions (W x D) with surface-mounted installation in mm 600 mm x 500 mm
Casing height incl. connection box in mm 63
Cutout dimensions in mm (width) with surface-mounted installation 600 mm
Cutout dimensions in mm (depth) with surface-mounted installation 500 mm
Weight in kg 14
Total rated load in kW 8.300
Position of gas connection Hinten links
Voltage in V 220-240
Frequency in Hz 50-60
Length of supply lead in m 1.4
Jets for liquid gas
Wok ring
Small trivet
EAN 4002516338338

What's included

Jets for liquid gas
Wok ring
Small trivet

Efficiency and sustainability

Efficient and environmentally friendly
Gas - efficient and environmentally friendly

With environmental and economic benefits: Cooking with gas


Features

Perfect wok kitchen with gas hobs
Wok burner

Professional: mono or dual wok burner for uniform and/or separate power regulation of both flame rings.


The innovative
Gas hobs with electronic controls

More safety and convenience: Intelligent features make cooking with gas a great choice.


Maintenance

Efficiently protects and makes cleaning easier
ComfortClean pot rests

Fast cleaning: Remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.


High quality features for a long life
Enamelled pot rests and burner parts

Nothing lasts longer and is easier to clean: enamelled cast-iron pot rests and burners with PerfectClean.


User convenience

Comfortably reignite the flame
Electronic ignition and single-handed controls

No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.


Everything under control
Front knob controls

Easy controls to regulate: Convenient power level control via plastic or metal knobs.


Safety

Automatic reignition for extra safety
GasStop & ReStart

Safe cooking: Automatic re-ignition for flame failure Should this prove unsuccessful, the gas supply is turned off immediately.


Flame failure monitor for maximum safety
GasStop

Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.


Design

A gas hob to suit every kitchen style
Individual design

Attractive design to suit all tastes: a minimalist stainless-steel look or elegant ceramic glass.


Downloads

Operating instructions/Installation instructions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads
dwg
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000008/200000851/20000085156.png
Descriptions
KM 3014 G (installation drawing)
1. Front, 2. Casing depth, 3. Mains connection box with mains connection cable L = 2000 mmm, 4. Gas connection R 1/2" - ISO 7-1 (DIN EN 10226)
