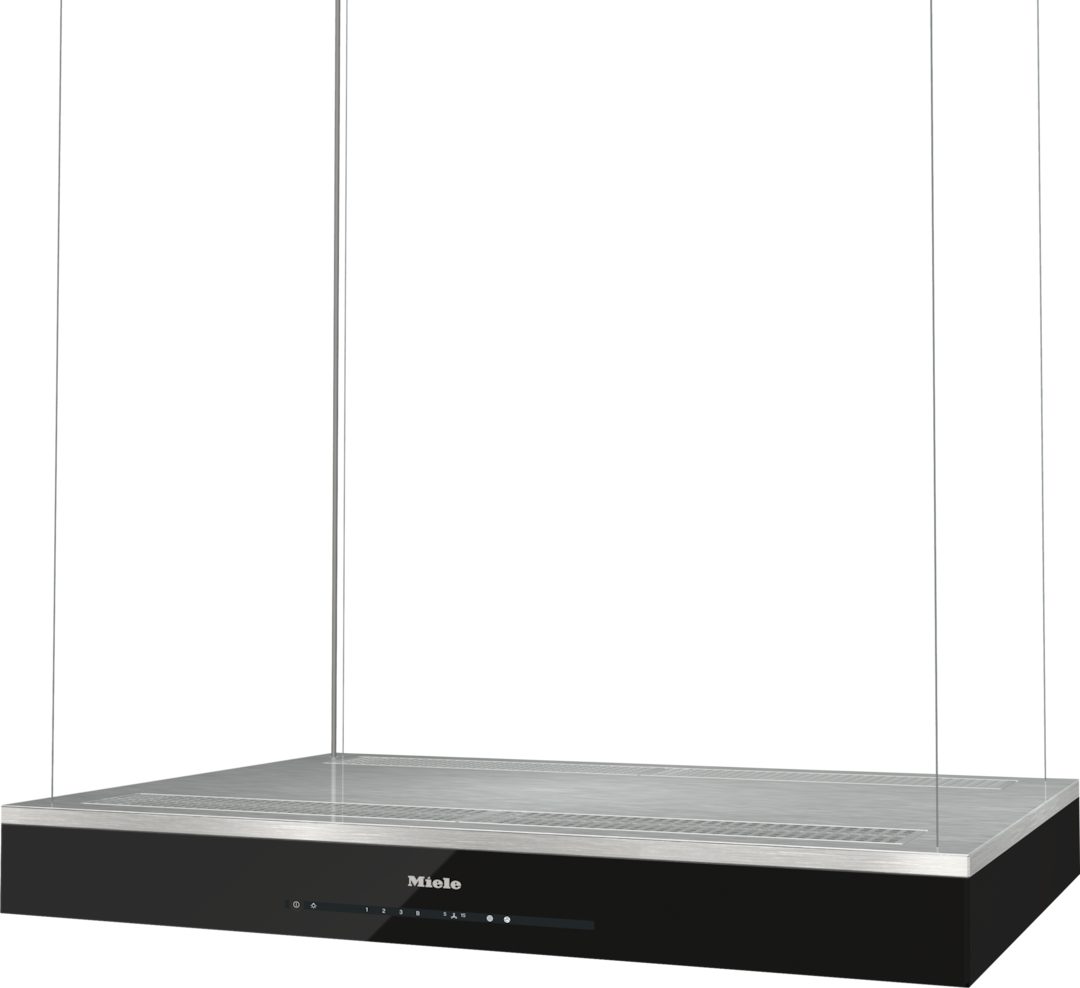

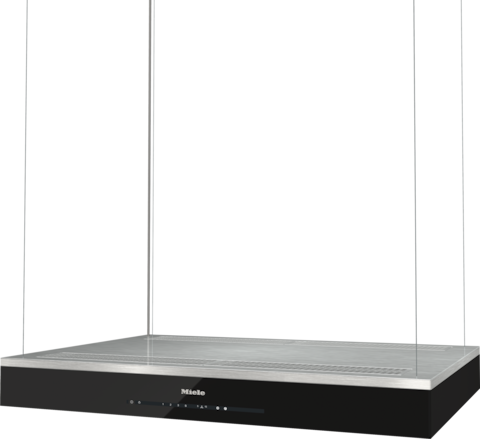

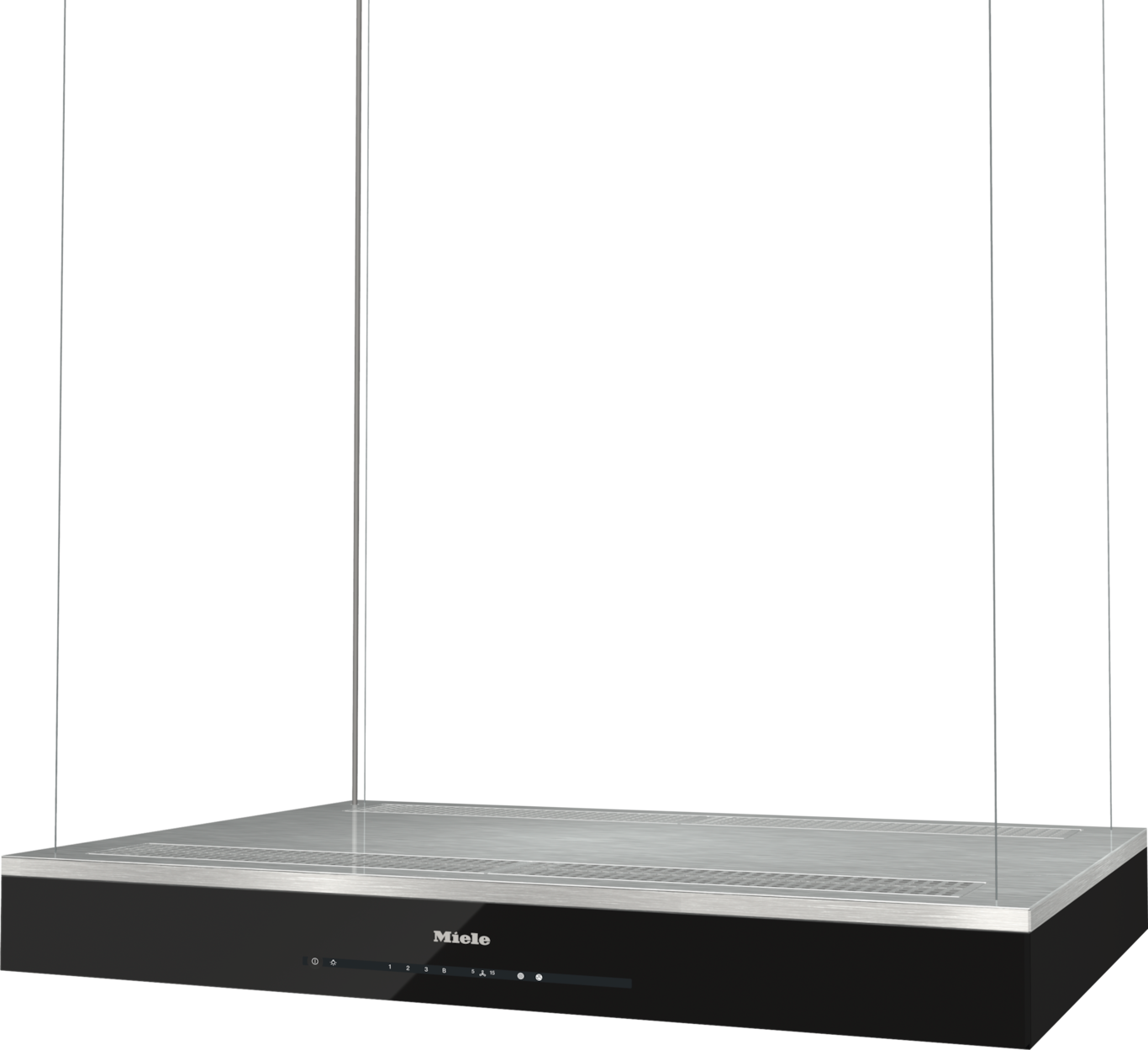

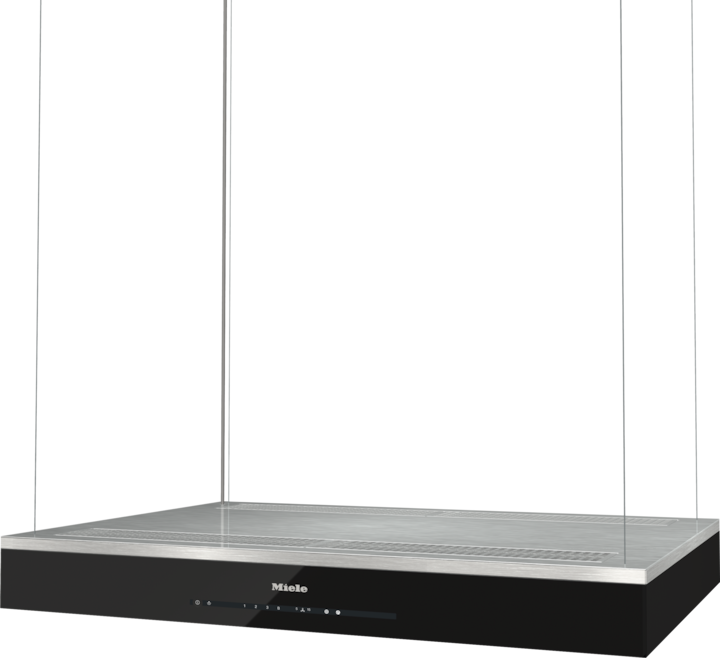

Island cooker hood

DA 6708 D Aura Edition 6000 Stainless steel

with energy-efficient LED lighting and touch controls for simple operation.

Colour:Stainless steel

sale price$9,900.00




Product details

  • Family design – based on Miele built-in appliances
  • Unique user convenience –
    Con@ctivity
  • Powerful – 620 m3/h in Booster level
  • Efficient -
    NoSmell active charcoal filter
  • Handy - programmable
    active charcoal filter saturation indicator
  • Manufactured with great care by
  • Safety Information

Product data sheet

Island cooker hood
Type of air guide Recirculation
Colour Stainless steel
Miele@home
Automatic function Con@ctivity
Electronic controls
Touch controls
Controls Touch-on-glass controls
Miele@mobile app
Power levels (number without Booster level) 3
Booster levels 1
Run-on time 5/15 min.
Grease filter saturation indicator
Active charcoal filter saturation indicator
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply) 2
Number x W 4 x 3 W
Light intensity in Lx 720 lx
Colour temperature in K 3500 Kelvin
Dimmer function
Single-action blower
Air throughput in Level 1 (m³/h) according to EN 61591 250
Air throughput in Level 2 (m³/h) according to EN 61591 370
Air throughput in Level 3 (m³/h) according to EN 61591 470
Air throughput in Booster level 1 (m³/h) according to EN 61591 620
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 54
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 63
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 67
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 74
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 39
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 48
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 53
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 59
Safety shut-off
Single-ply safety glass (ESG)
Overall height for recirculation mode cooker hoods in mm 500–1500
Overall height for recirculation in in. (mm) 500
Overall height for recirculation mode cooker hoods in mm 1500
Canopy width in in. (mm) 1000
Canopy height in in. (mm) 112
Depth of hood canopy in in. (mm) 700
Net weight in kg 33
Length of supply lead in m 1.8
Hard-wired connection
Total rated load in kW 0.156
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Fitting template
Combination with WiFi-enabled Miele hob recommended
Active charcoal filter DKF 21-P
EAN 4002515989395

What's included

Active charcoal filter DKF 21-P

Features

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.


Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.


User convenience

Countdown time conveniently in view
Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.


Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.


Automatic fan run-on
Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.


Safety

Always on the safe side
Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.


Downloads

Operating instructions/Installation instructions
PDF
Downloads
Mounting plan
PDF
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads
dwg
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000010/200001024/20000102402.png
Descriptions
DA 6708 D (Installation drawing)
1) Mains connection cable, The distance to the ceiling or furniture mounted above the unit should be at least 300 mm.,
