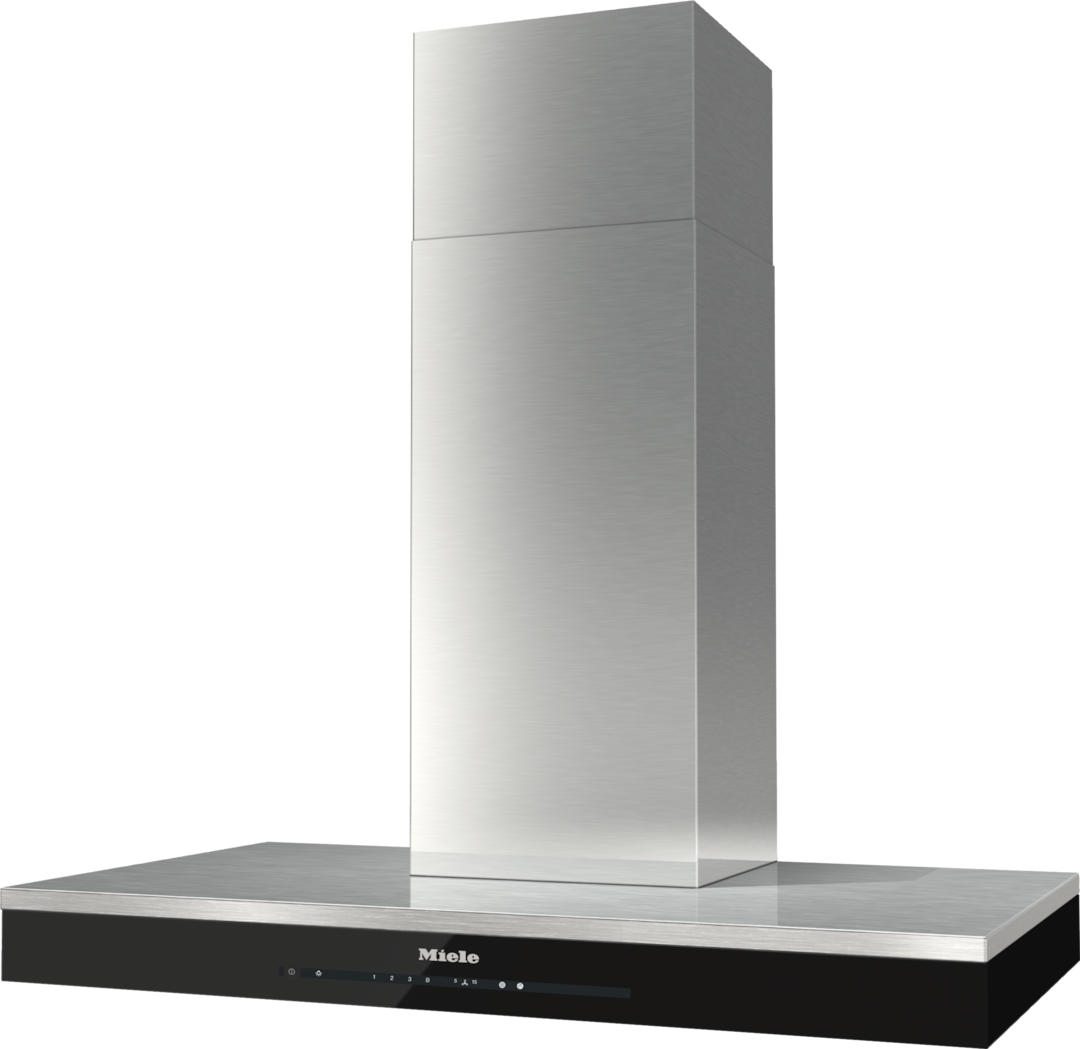

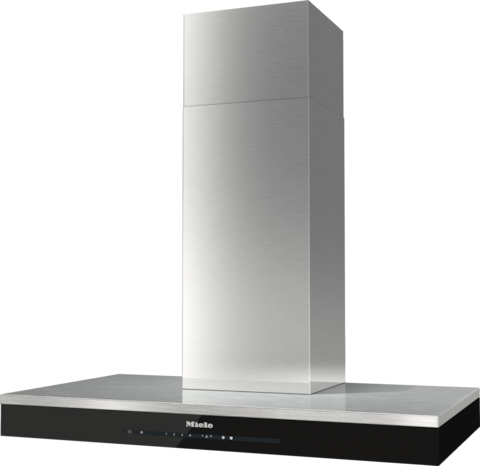

  • Miele - DA 6698 W Puristic Edition 6000 Stainless steel – Cooker hoods - 1
Wall mounted cooker hoodDiamond

DA 6698 W Puristic Edition 6000 Stainless steel

with energy-efficient LED lighting and touch controls for simple operation.
Colour:Stainless steel
sale price$7,700.00


Product details

  • Family design – based on Miele built-in appliances
  • Unique user convenience –
    Con@ctivity
  • Powerful – 880 m3/h in Booster level
  • Pleasantly quiet –
    Miele Silence package
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
DA 6698 W Puristic Edition 6000
Manufacturer material number
10869040
EAN number
4002516011811
Marketing class
Platinum
Wall mounted cooker hood
Type of air guide
Can be retrofitted
Recirculation conversion kit (order separately)
DUW 20
Active charcoal filter (order separately)
DKF 12-P
Colour
Stainless steel
Miele@home
Con@ctivity
Yes
Electronic controls
Touch controls
Controls
Touch-on-glass controls
Miele@mobile app
Power levels (number without Booster level)
3
Booster levels
1
Run-on time 5/15 min.
Grease filter saturation indicator
Active charcoal filter saturation indicator
Silence package
Easy-to-clean canopy interior – CleanCover
Google voice control
Push notifications
RemoteUpdate
Smart Home Integration
PowerManagement system
Number of dishwasher-safe stainless steel grease filters (10-ply)
3
Number x W
3 x 3 W
Light intensity in Lx
670 lx
Colour temperature in K
3500 Kelvin
Dimmer function
Fan power (m³/h)
990
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591
320
Air throughput in Level 2 (m³/h) according to EN 61591
480
Air throughput in Level 3 (m³/h) according to EN 61591
640
Air throughput in Booster level 1 (m³/h) according to EN 61591
880
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
46
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
56
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
64
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
72
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
31
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
41
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
49
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
57
Air throughput in Level 1 (m³/h) according to EN 61591
200
Air throughput in Level 2 (m³/h) according to EN 61591
330
Air throughput in Level 3 (m³/h) according to EN 61591
390
Air throughput in Booster level 1 (m³/h) according to EN 61591
460
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
55
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
65
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
68
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
73
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
40
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
50
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
53
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
58
Safety shut-off
Single-ply safety glass (ESG)
Canopy dimensions (W x H x D) in mm
898 x 85 x 500
Overall height for vented and external in in. (mm)
710
Overall height for extraction mode and external mode cooker hoods in mm
1030
Overall height for recirculation in in. (mm)
840
Overall height for recirculation mode cooker hoods in mm
1160
Canopy width in in. (mm)
898
Canopy height in in. (mm)
85
Depth of hood canopy in in. (mm)
500
Net weight in kg
26
Length of supply lead in m
1.5
Standard plug fitted
Total rated load in kW
0.239
Voltage in V
230
Fuse rating in A
10
Frequency in Hz
50
Number of phases
1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm
150
Telescopic chimney
Combination with WiFi-enabled Miele hob
recommended
Non-return flap
EAN
4002516011811

What's included

Non-return flap
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • More convenience when cooking
    More convenience when cooking

    Con@ctivity

    The cooker hood reacts automatically to the hob and the oven.

  • Easy to use and effective against grease
    Easy to use and effective against grease

    Stainless steel grease filters (10-layer)

    Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

  • Performance and convenience as standard
    Performance and convenience as standard

    Silence

    Efficient and quiet: the fan is effectively insulated with special soundproofing mats.

  • Convenience and safety in detail
    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Performance and convenience as standard
Performance and convenience as standard

Silence

Efficient and quiet: the fan is effectively insulated with special soundproofing mats.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

User convenience

More convenience when cooking
More convenience when cooking

Con@ctivity

The cooker hood reacts automatically to the hob and the oven.
Automatic fan run-on
Automatic fan run-on

Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Countdown time conveniently in view
Countdown time conveniently in view

Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.

Safety

Always on the safe side
Always on the safe side

Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

Smart Extras

  • Always up to date with software updates
    Always up to date with software updates

    RemoteUpdate1,

    Bringing new functions directly to your appliance.

  • Everything at a glance with smart notifications
    Everything at a glance with smart notifications

    Push notifications1,

    Receive relevant information directly on your smartphone or tablet.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration1,

    Intelligent integration of Miele appliances into a Smart Home system.

  • A spark of magic for the kitchen
    A spark of magic for the kitchen

    Voice control1, 2,

    Convenient operation via voice control.

Downloads

Mounting plan
PDF
Download
Operating instructions/Installation instructions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/dam/a8f830f5-8a3b-4a66-95e6-b3c4016ef84b/20000098271_HighresDigitalRGB.png
Descriptions
DA 6698 W, CLST (Installation drawing)
1. Extraction, 2. Recirculation, 3 Ventilation grilles at the top for recirculation, 4. + 5. Vent cut-out positions (Area 5 not required for recirculation)
POSTSCRIPT
Download
  • 1.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • 2.Voice control uses the Google LLC and Amazon Alexa services and is based on their availability. The range of functions can vary depending on the country. Google, Google Home and Google Nest Mini are trademarks of Google LLC. Google Nest Mini requires WiFi, an internet connection, a nearby power socket, a Google account and a compatible mobile device. Minimum requirements for the operating system can be found at: g.co/home/req. Compatible with Alexa. Amazon, Alexa and all associated trademarks are trademarks of Amazon.com, Inc. or their affiliated companies.
