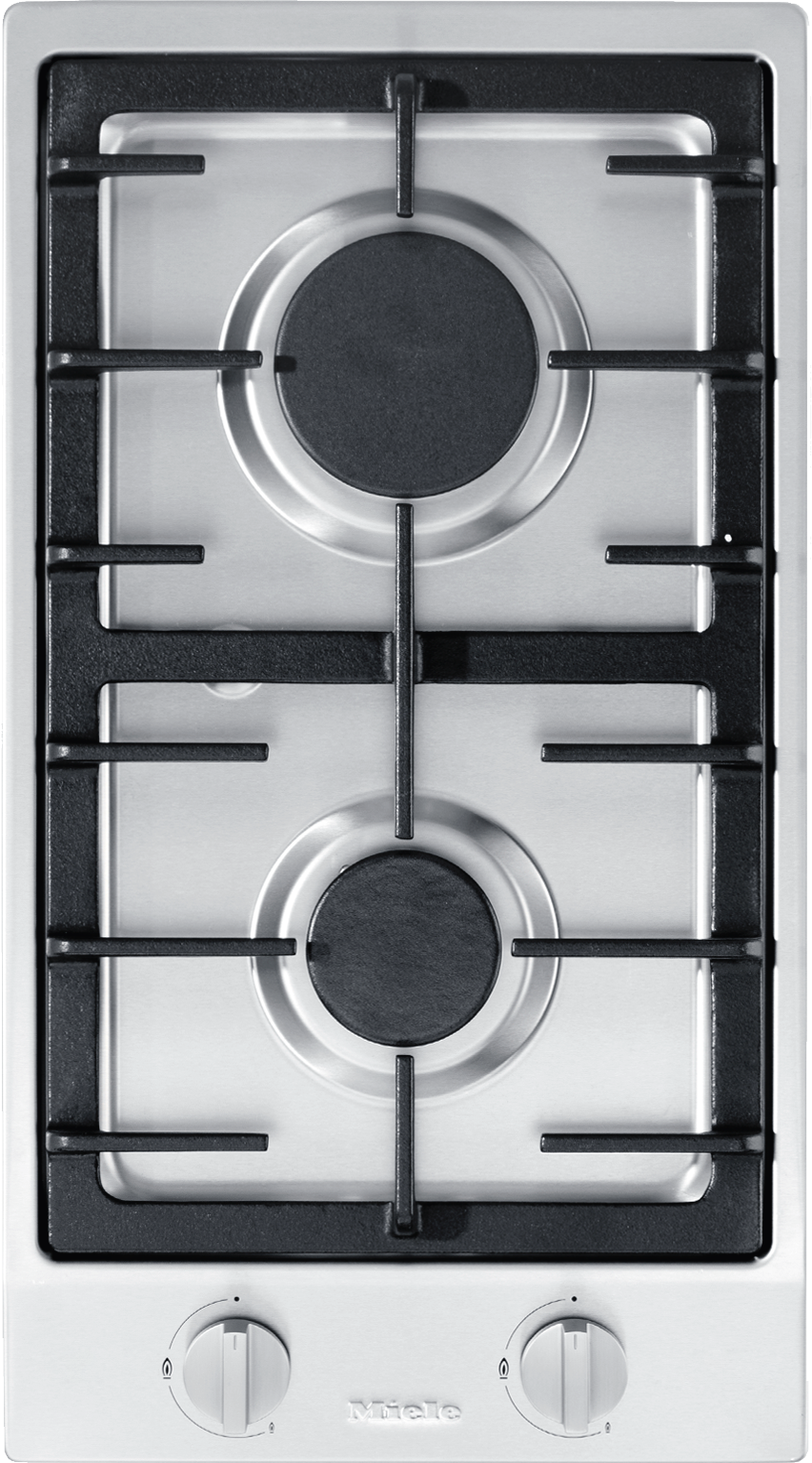

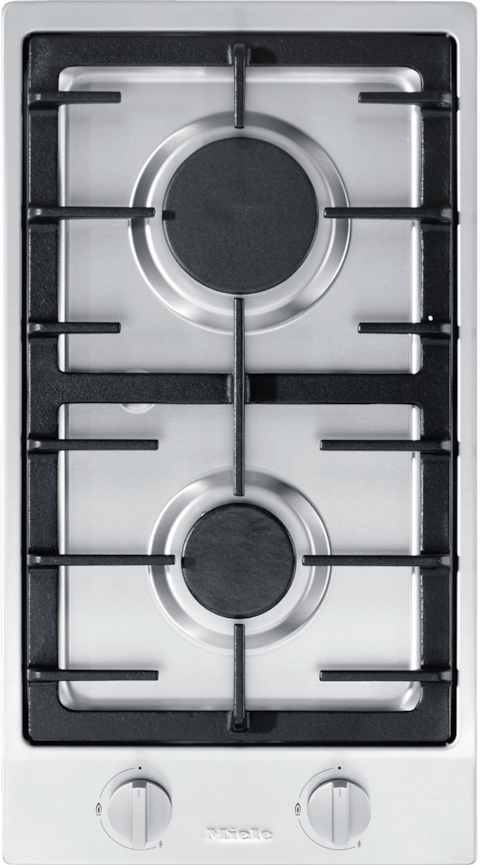

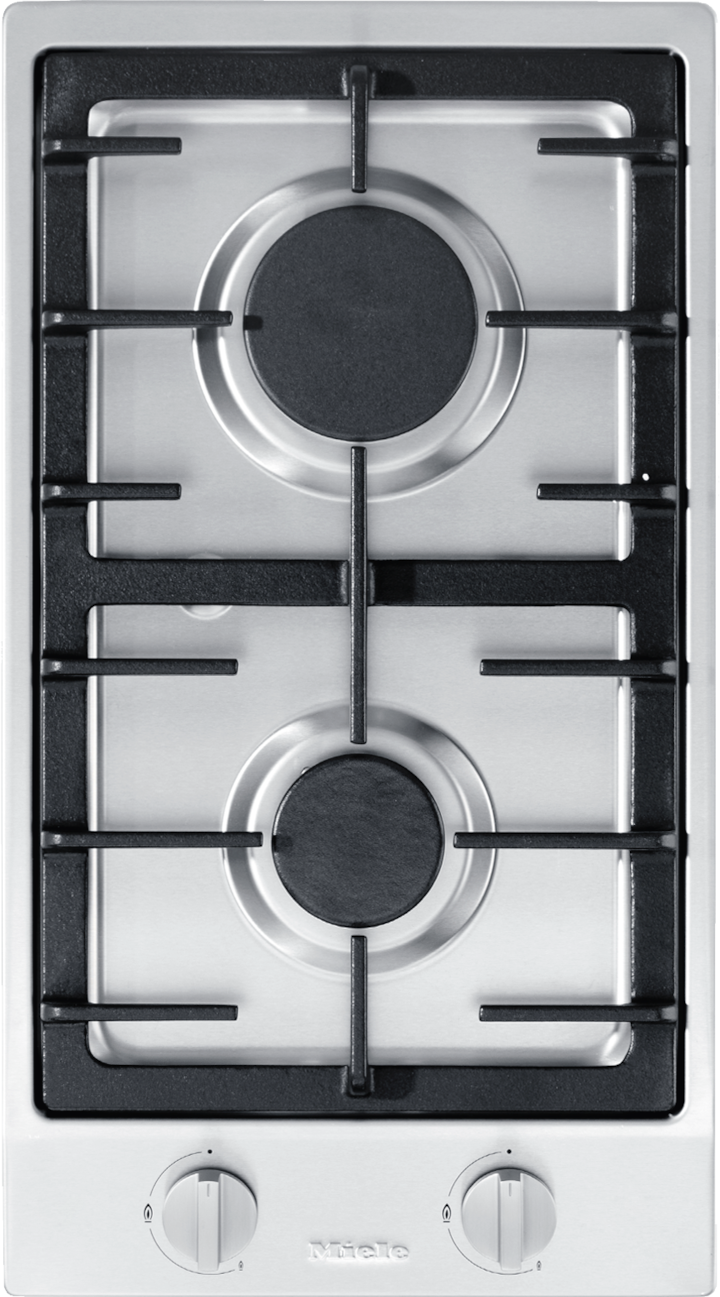

  • Miele - CS 1013-1 – Hobs - 1
ProLine elementGold

CS 1013-1

with two burners
sale price$3,400.00
1
GST inclusive


Product details

  • Professional design - 288 mm wide stainless steel trough
  • Particularly versatile - 1 medium burner and 1 large burner
  • Simple controls -single-handed operation via rotary dial control
  • Extremely safe -
    GasStop function
  • Particularly high-quality - enamelled cast-iron pot rests
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
CS 1013-1
Manufacturer material number
07789280
EAN number
4002514847436
Marketing class
Gold
Heating type
Gas
ProLine
Stainless steel trough
Cast iron pot rests (matt black enamelled)
Miele logo embossed in stainless steel
Number of cooking zones
2
Medium burner in kW
1.80
Large burner in kW
3
Position
front centre
Type
Standard burner
Max. rating in W
1800
Position
rear centre
Type
High-speed burner
Max. rating in W
3000
Operation via sensor controls
Knob
Operation via knobs
Heat indicator
Operational indicator
GasStop
Dimensions (W x D) in mm
288 x 73 x 520
Dimensions in mm (width)
288
Dimensions in mm (height)
73
Dimensions in mm (depth)
520
Cut-out dimensions (W x D) with surface-mounted installation in mm
272 mm x 500 mm
Casing height incl. connection box in mm
106
Cutout dimensions in mm (width) with surface-mounted installation
272 mm
Cutout dimensions in mm (depth) with surface-mounted installation
500 mm
Weight in kg
8
Total rated load in kW
4.800
Position of gas connection
Hinten links
Voltage in V
220 - 240
Frequency in Hz
50 - 60
Length of supply lead in m
1.4
Mains cable
EAN
4002514847436

What's included

Mains cable
  • CombiSet appliances leave nothing to be desired
    CombiSet appliances leave nothing to be desired

    CombiSet – combination

    Variety is the programme: The CombiSet programme offers professional appliances for every type of cooking.

  • The perfect combination
    The perfect combination

    Stainless-steel frame

    Uniform frame design: no matter which ProLine appliances are installed, they always match each other perfectly.

  • Design in detail
    Design in detail

    Rotary dial controls

    Matching convenience: metal rotary dial controls* complement the design style of the ProLine elements.

User convenience

CombiSet appliances leave nothing to be desired
CombiSet appliances leave nothing to be desired

CombiSet – combination

Variety is the programme: The CombiSet programme offers professional appliances for every type of cooking.
Design in detail
Design in detail

Rotary dial controls

Matching convenience: metal rotary dial controls* complement the design style of the ProLine elements.
Ergonomics in detail
Ergonomics in detail

Inclined control panel

Perfect looks: The ergonomically arranged control panel simplifies operation.

Design

The perfect combination
The perfect combination

Stainless-steel frame

Uniform frame design: no matter which ProLine appliances are installed, they always match each other perfectly.

Downloads

Operating instructions/Installation instructions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/dam/6aee6536-2256-4ec3-915e-b3c60185f14b/20000079916_HighresDigitalRGB.png
Descriptions

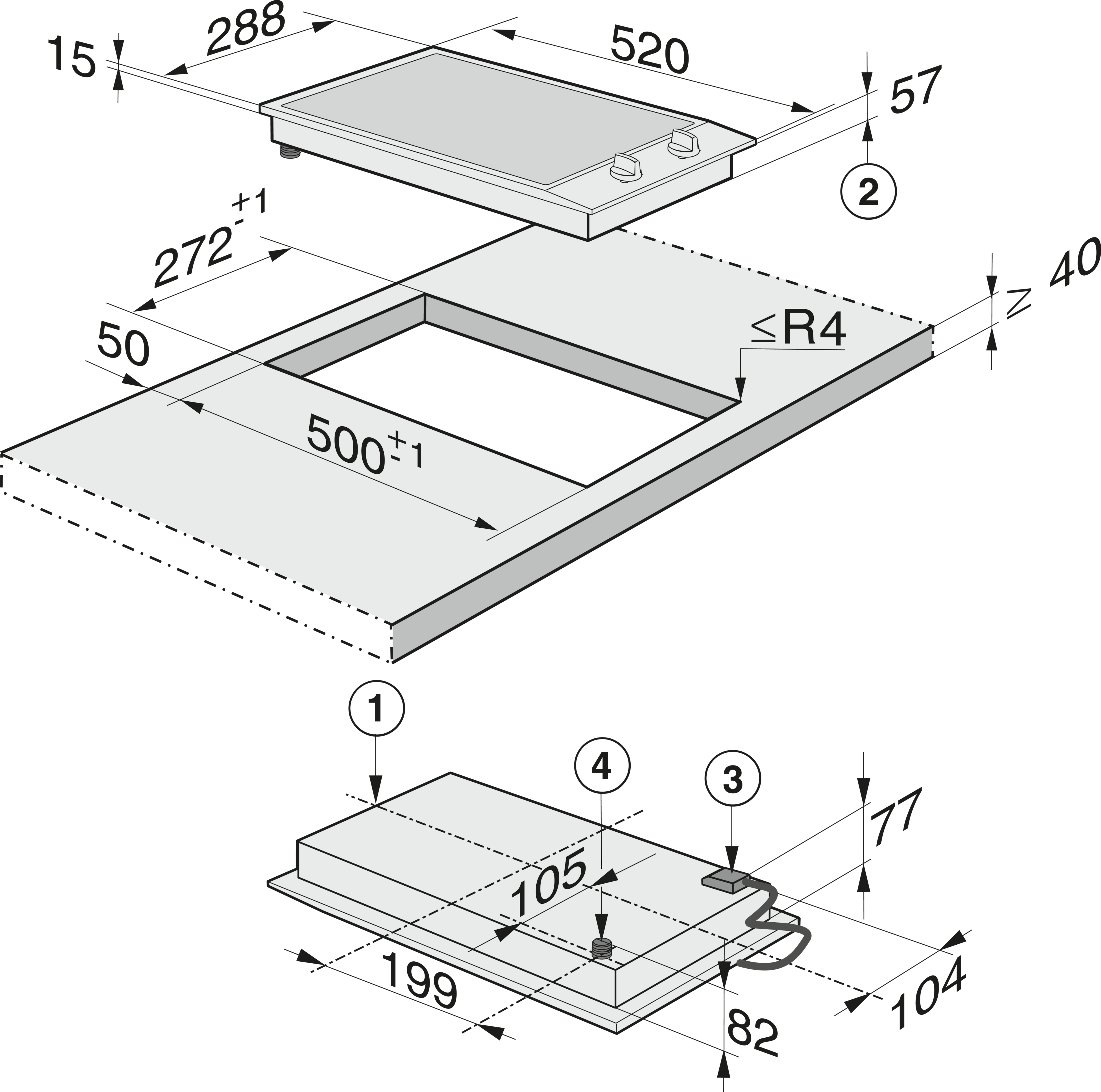

CS 1013-1 G (drawing)
The final space requirements for the gas connection should be checked with a licensed gas fitter, in order to conform to , local and national regulations. The room of installation must be at least 20m³ in size and have an outside door or window., 1) Front, 2) Height for building in, 3) Mains connection box with cable, 2000 mm long, 4) Gas connection R 1/2 - ISO 7-1 (DIN EN 10226)
