ProLine element

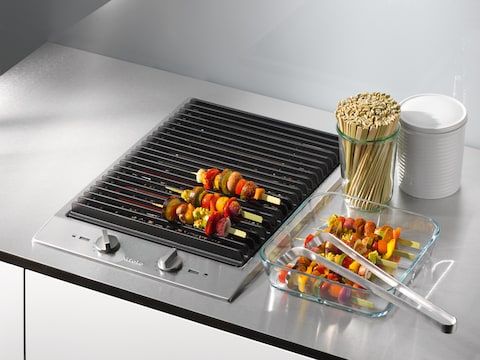

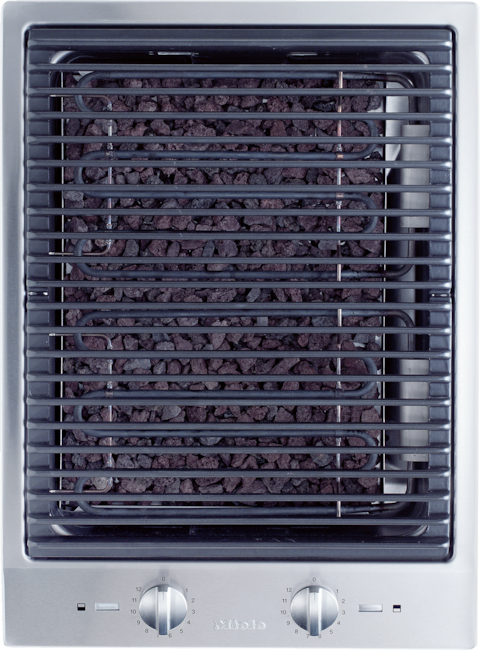

CS 1322 BG

with electrically heated barbecue grill
sale price$5,200.00
1

GST inclusive



Product details

  • Professional design - Stainless steel surface, 380 mm wide
  • Particularly versatile - 2 separately controlled heating areas
  • Easy and direct controls -operation via metal rotary dial control
  • Particularly convenient and safe - in operation indicator
  • Extensive range - Standard as well as optional accessories
  • Manufactured with great care by
  • Safety Information

Product data sheet

Heating type Other type of heating
ProLine
Stainless-steel frame
Surface-mounted installation
Cast-iron griddle
Position In front
Type Electric grill
Size in mm 210x250
Max. rating in W 1700
Position Rear
Type Electric grill
Size in mm 210x250
Max. rating in W 1700
Operation via knobs
Dimensions (W x D) in mm 380 x 115 x 520
Dimensions in mm (width) 380
Dimensions in mm (height) 115
Dimensions in mm (depth) 520
Cut-out dimensions (W x D) with surface-mounted installation in mm 364 mm x 500 mm
Cutout dimensions in mm (width) with surface-mounted installation 364 mm
Cutout dimensions in mm (depth) with surface-mounted installation 500 mm
Weight in kg 14
Total rated load in kW 3.400
Voltage in V 230-240
Frequency in Hz 50-60
Length of supply lead in m 2
Mains cable
Lava rocks
Cleaning brush
EAN 4002514399010

What's included

Mains cable
Lava rocks
Cleaning brush
The perfect combination
Stainless-steel frame

Uniform frame design: no matter which ProLine appliances are installed, they always match each other perfectly.

Design in detail
Rotary dial controls

Matching convenience: metal rotary dial controls* complement the design style of the ProLine elements.

CombiSet appliances leave nothing to be desired
CombiSet – combination

Variety is the programme: The CombiSet programme offers professional appliances for every type of cooking.

User convenience

Design in detail
Rotary dial controls

Matching convenience: metal rotary dial controls* complement the design style of the ProLine elements.

Ergonomics in detail
Inclined control panel

Perfect looks: The ergonomically arranged control panel simplifies operation.

CombiSet appliances leave nothing to be desired
CombiSet – combination

Variety is the programme: The CombiSet programme offers professional appliances for every type of cooking.

Design

The perfect combination
Stainless-steel frame

Uniform frame design: no matter which ProLine appliances are installed, they always match each other perfectly.

Matching products and accessories

Lid
CSAD 1400

Lid

for ProLine elements.

$801.00
Spacer strip
CSZL 1500

Spacer strip

for installing several CombiSet elements in one single cut-out.

$276.00
Griddle plate
CSGP 1400

Griddle plate

For grilling and frying meat, fish, vegetables and much more.

$762.00
Multi-purpose microfibre cloth, qty 1
GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

$26.00

Downloads

Product Fact Sheet
PDF
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000004/200000469/20000046936.png
Descriptions
CS 1322 BG (installation drawing)
1. Front, 2. Building-in depth, 3. Mains connection box with mains connection cable, L = 2000 mm, 4. Drain tap
