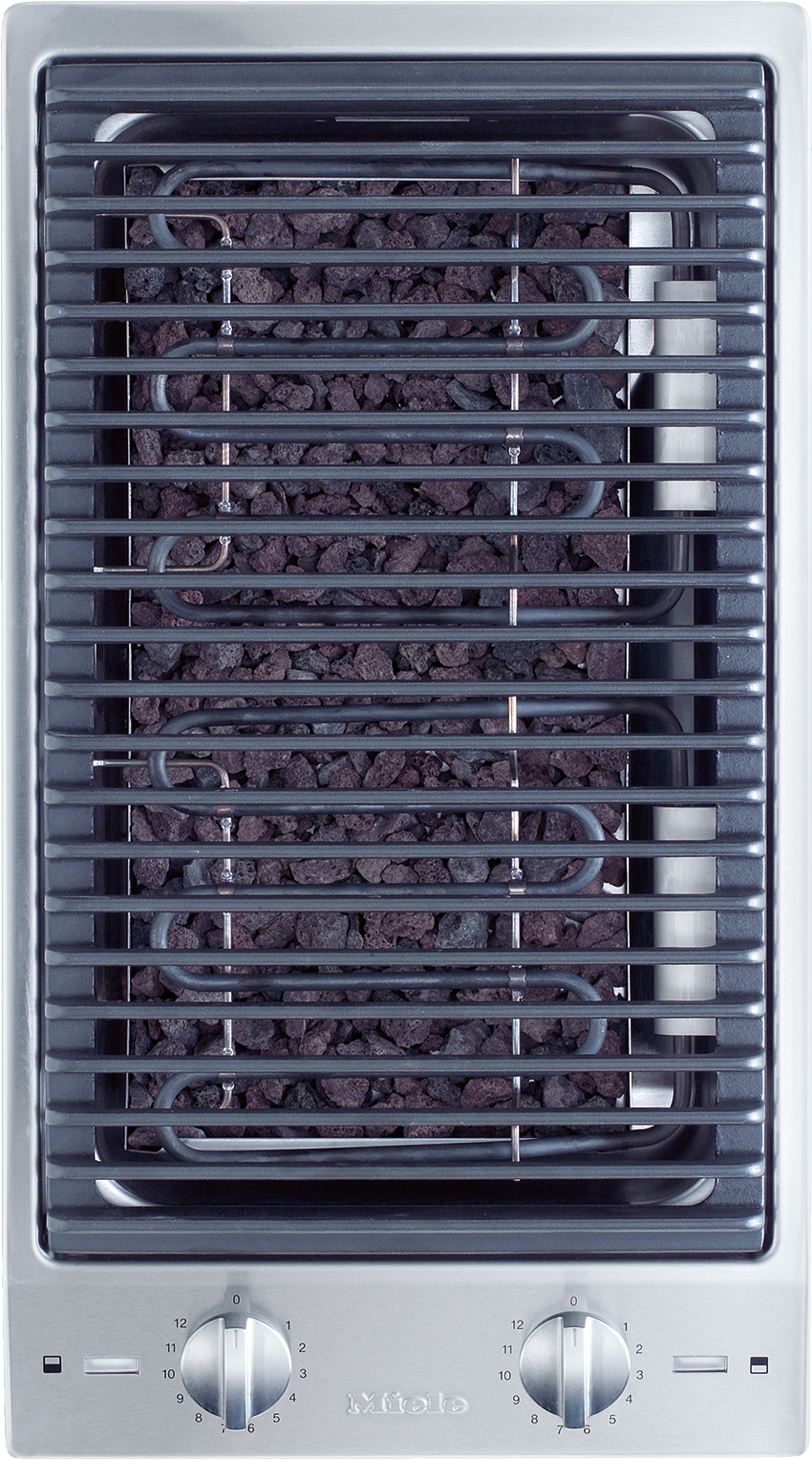

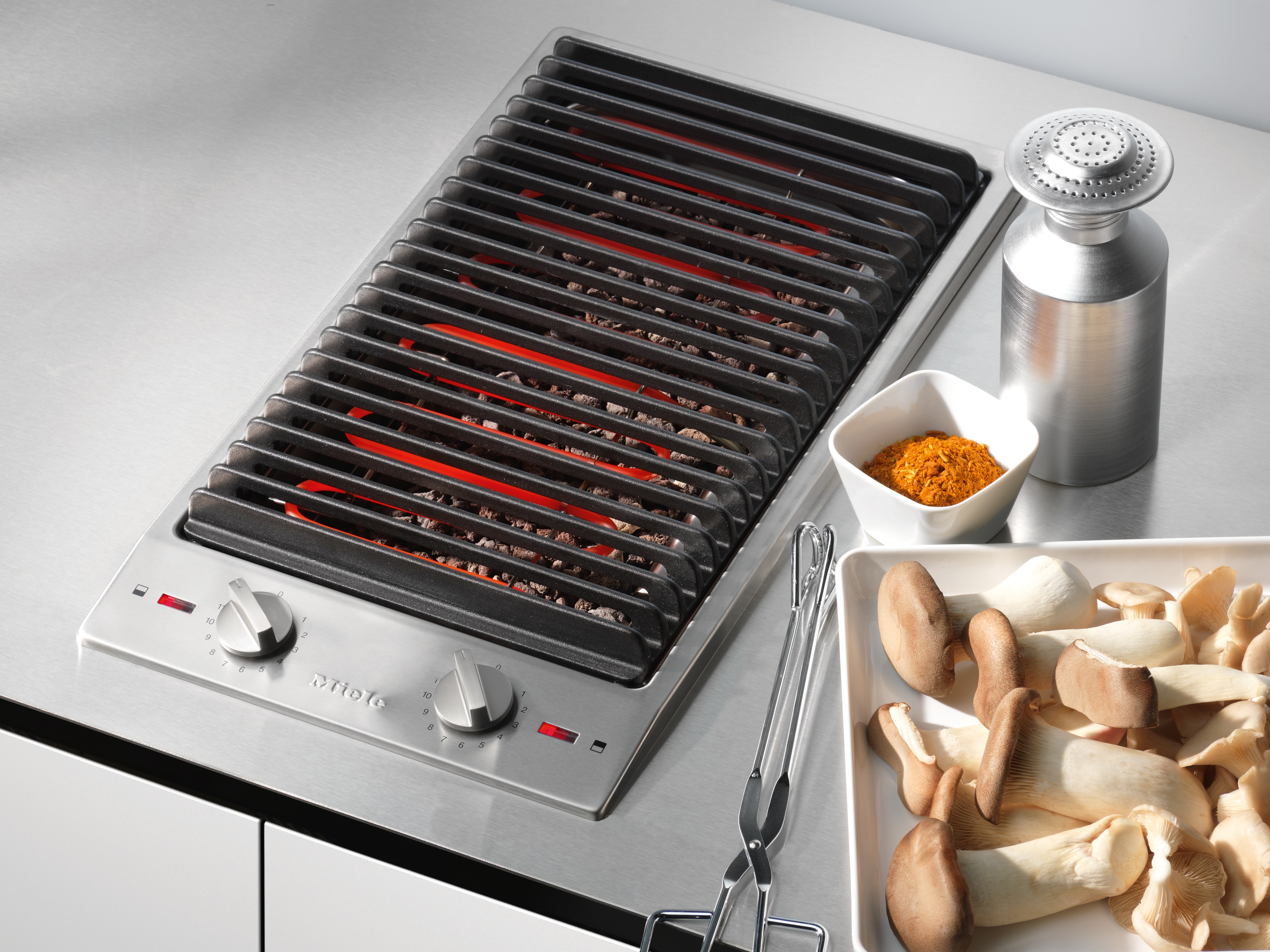

  • Miele - CS 1312 BG – Hobs - 1
  • Miele - CS 1312 BG – Hobs - 2
  • Miele - CS 1312 BG – Hobs - 3
ProLine elementGold

CS 1312 BG

with electrically heated barbecue grill
sale price$4,300.00
1
GST inclusive


Product details

  • Professional design - Stainless steel trough, 288 mm wide
  • Particularly versatile - 2 separately controlled heating areas
  • Easy and direct controls -operation via metal rotary dial control
  • Particularly convenient and safe - in operation indicator
  • Extensive range - Standard as well as optional accessories
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
CS 1312 BG
Manufacturer material number
07119510
EAN number
4002514399287
Marketing class
Gold
Heating type
Other type of heating
ProLine
Stainless-steel frame
Surface-mounted installation
Cast-iron griddle
Position
In front
Type
Electric grill
Size in mm
210x250
Max. rating in W
1500
Position
Rear
Type
Electric grill
Size in mm
210x250
Max. rating in W
1500
Operation via knobs
Residual heat indicator
Dimensions (W x D) in mm
288 x 115 x 520
Dimensions in mm (width)
288
Dimensions in mm (height)
115
Dimensions in mm (depth)
520
Cut-out dimensions (W x D) with surface-mounted installation in mm
272 mm x 500 mm
Cutout dimensions in mm (width) with surface-mounted installation
272 mm
Cutout dimensions in mm (depth) with surface-mounted installation
500 mm
Weight in kg
11
Total rated load in kW
3
Voltage in V
230 - 240
Frequency in Hz
50 - 60
Length of supply lead in m
2
Mains cable
Lava rocks
Cleaning brush
EAN
4002514399287

What's included

Mains cable
Lava rocks
Cleaning brush
  • CombiSet appliances leave nothing to be desired
    CombiSet appliances leave nothing to be desired

    CombiSet – combination

    Variety is the programme: The CombiSet programme offers professional appliances for every type of cooking.

  • The perfect combination
    The perfect combination

    Stainless-steel frame

    Uniform frame design: no matter which ProLine appliances are installed, they always match each other perfectly.

  • Design in detail
    Design in detail

    Rotary dial controls

    Matching convenience: metal rotary dial controls* complement the design style of the ProLine elements.

User convenience

CombiSet appliances leave nothing to be desired
CombiSet appliances leave nothing to be desired

CombiSet – combination

Variety is the programme: The CombiSet programme offers professional appliances for every type of cooking.
Design in detail
Design in detail

Rotary dial controls

Matching convenience: metal rotary dial controls* complement the design style of the ProLine elements.
Ergonomics in detail
Ergonomics in detail

Inclined control panel

Perfect looks: The ergonomically arranged control panel simplifies operation.
User-friendliness in detail
User-friendliness in detail

Indicators

Safe and effective: The display with up to three types of indicators.

Design

The perfect combination
The perfect combination

Stainless-steel frame

Uniform frame design: no matter which ProLine appliances are installed, they always match each other perfectly.

Downloads

Product Fact Sheet
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/dam/328eb1ad-e2a9-460d-8f9a-b3c601876cb2/20000046950_HighresDigitalRGB.png
Descriptions
CS 1312 BG (installation drawing)
Installation note: Allow sufficient space below the electric barbeque for drainage of water into a suitable container. The clearance between the electric barbecue and a , Miele overhead rangehood must be no less than 65 cm. Recirculating rangehood operation above an electric barbecue is not recommended., 1) Front, 2) Height for building in , 3) Mains connection box with cable, 2000 mm long, 4) Drainage valve
POSTSCRIPT
Download
  • 1.GST inclusive

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
