Slimline cooker hood

DAS 2920 Stainless steel

with EasySwitch controls for convenient operation

Colour:Stainless steel

sale price$3,000.00

GST inclusive



Product details

  • Classic design – stainless steel panel, 90 cm wide
  • LED strip for uniform lighting
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • Safe and easy to clean -
    Miele CleanCover
  • Recirculation mode –
    Active AirClean or Longlife AirClean filter
  • Manufactured with great care by
  • Safety Information

Product data sheet

Slimline cooker hood
Type of air guide Can be retrofitted
Recirculation conversion kit (order separately) DUU 151,DUU 150
Active charcoal filter (order separately) [ "DKFS 31-R", "DKFS 31-900 P" ]
Colour Stainless steel
Electronic controls
Touch-on-glass controls
Controls EasySwitch
Booster levels 1
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply) 1
Number x W 1 x 3,2 W
Light intensity in Lx 275 lx
Colour temperature in K 3500 Kelvin
Fan power (m³/h) 1145
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591 345
Air throughput in Level 2 (m³/h) according to EN 61591 500
Air throughput in Level 3 (m³/h) according to EN 61591 655
Air throughput in Booster level 1 (m³/h) according to EN 61591 925
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 50
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 59
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 65
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 73
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 36
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 45
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 51
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 59
Air throughput in Level 1 (m³/h) according to EN 61591 345
Air throughput in Level 2 (m³/h) according to EN 61591 495
Air throughput in Level 3 (m³/h) according to EN 61591 655
Air throughput in Booster level 1 (m³/h) according to EN 61591 865
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 58
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 68
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 74
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 81
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 44
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 54
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 60
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 67
Safety shut-off
Canopy width in in. (mm) 896
Canopy height in in. (mm) 36
Depth of hood canopy in in. (mm) 273
Net weight in kg 16
Length of supply lead in m 1.8
Standard plug fitted
Total rated load in kW 0.293
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm 150
Non-return flap
EAN 4002516495871

What's included

Non-return flap

Features

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.


Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.


Safety

Always on the safe side
Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.


Downloads

Operating instructions/Installation instructions
PDF
Downloads
Mounting plan
PDF
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads
dwg
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000018/200001840/20000184040.png
Descriptions

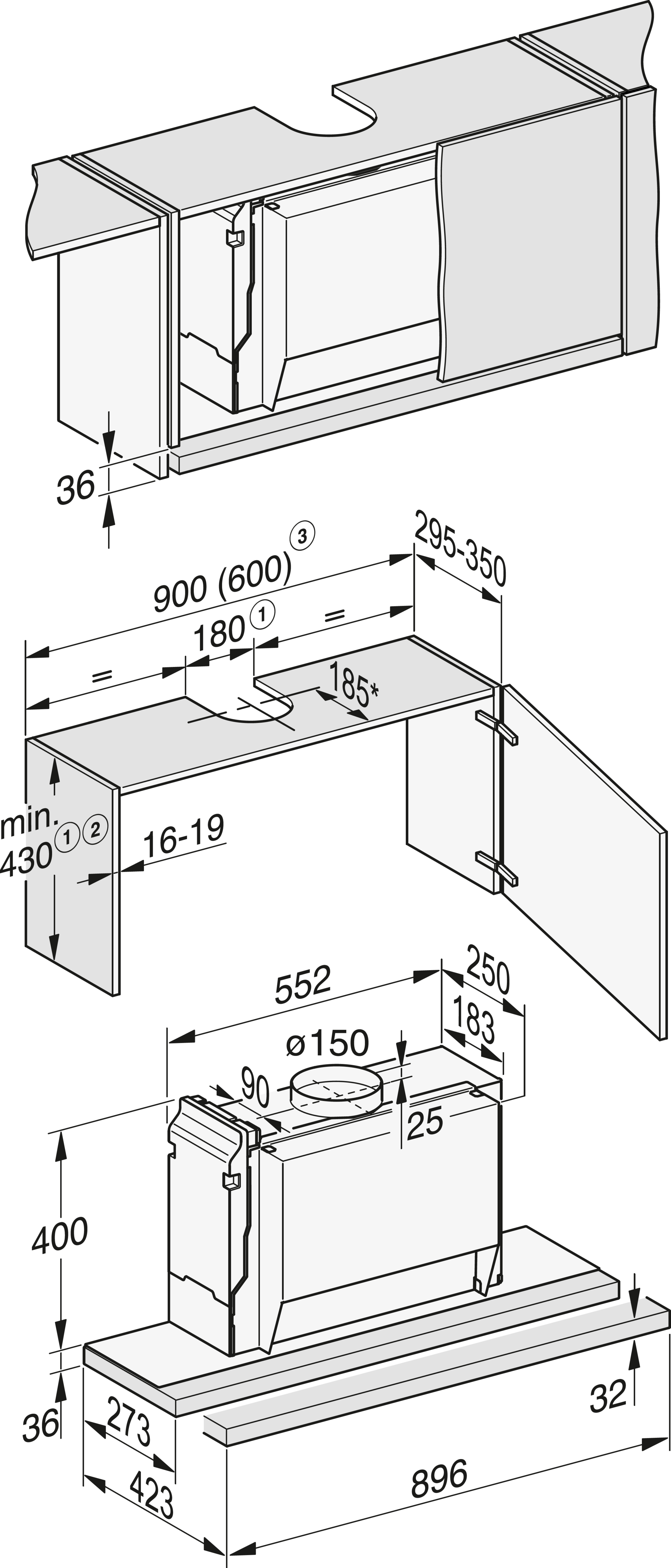

DAS2920, DAS4920 - Skizze, PAC, CN
① Exhaust air, for dimensions for cabinet height and cutouts, mounted accessories must be taken into account., ② Exhaust air, recirculation with conversion kit DUU 150., ③ Mounting is also possible in a 600 mm wide cabinet., , *In this installation situation, the screen is flush with the front edge of the cabinet. If the cooker hood is positioned further forward or back (e.g. when using a front panel), the dimensions must be adjusted accordingly.
