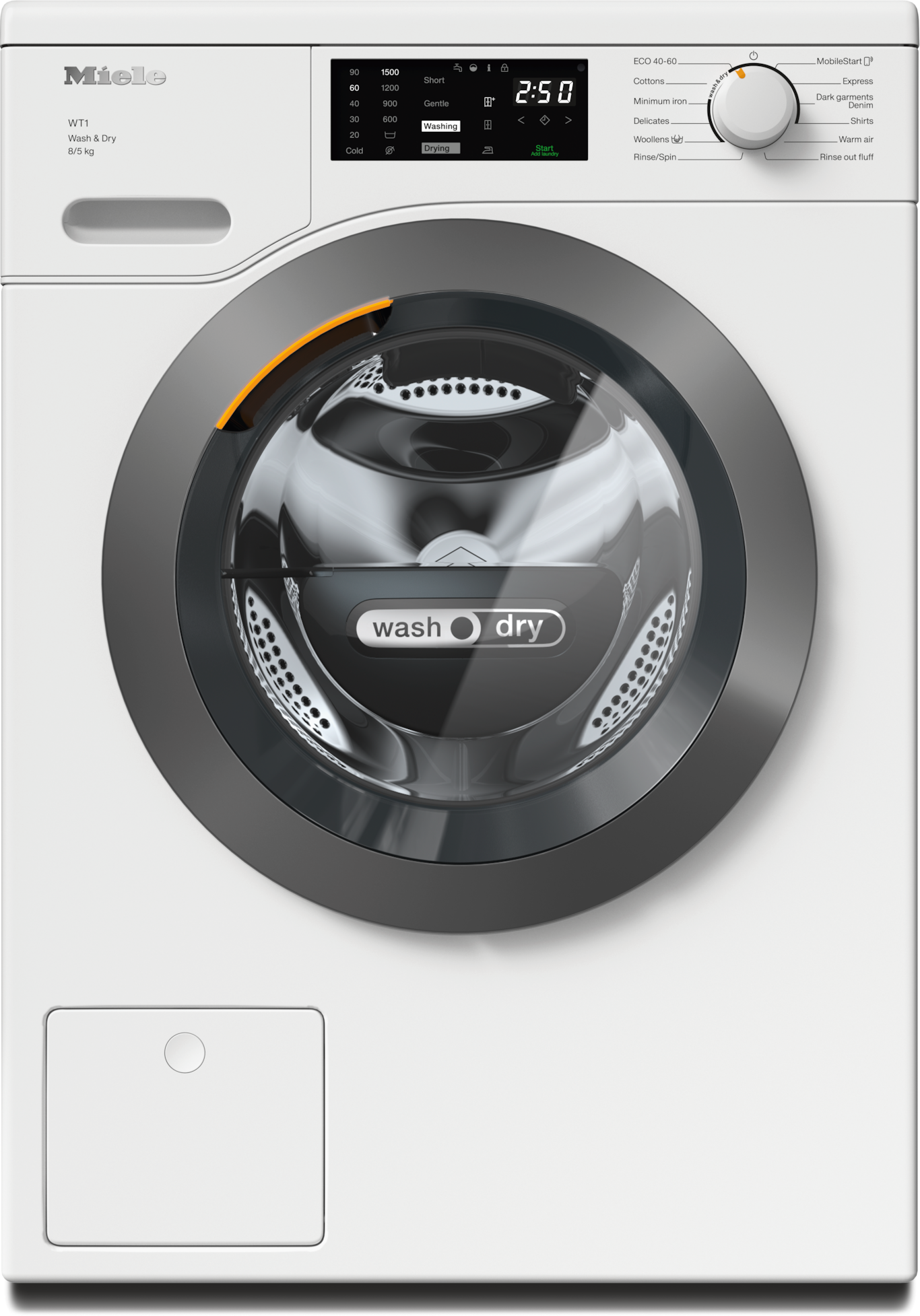

WT1 washer-dryer:

WTD160 WCS 8/5 kg

8/5 kg I 1500 rpm I PerfectCare I Miele@home I CapDosing

sale price$4,039.00

GST inclusive



Product details

  • Tested for
    20 years
    of perfect laundry care
  • 2 in 1: wash 8 kg and dry 5 kg in a single appliance
  • Gentle laundry care with the four
    PerfectCare
    functions
  • Complete app control of your washer-dryer with Miele@home5,
  • Exclusive
    CapDosing
    range for different fabrics and stains6,
  • Manufactured with great care by
  • Safety Information

Product data sheet

Suitable for stacking
Side-by-side
Slot-in
Can be built-under
Door hinge right
Front-loader
Continuous washing and drying cycle
Electronic residual moisture sensing
Condenser dryers with water cooling
Thermospin
Max. spin speed 1500
Rinse hold
Without spin function
Appliance colour Lotus white
Control panel colour Lotus white
Door design Graphite grey PearlFinish
Rotary selector colour Lotus White
Control panel version Straight
Control type Rotary control
Display DirectSensor white, 7 segment
Honeycomb drum
Load in kg for washing 8
Load in kg when drying 5
PerfectCare technology
Networking with Miele@home
Delay start up to 24 hours
Time left display
Automatic rinse out fluff
AutoClean detergent drawer
AddLoad
Acoustic airborne noise emission class (spin cycle; A–D) A
Sound emissions during spin cycle in dB(A) re 1 pW 71
Low temperature wash "Cold" and "20 °C"
Automatic load control
Flow meter
Foam sensing
ProfiEco motor
Cottons (coloureds)
Minimum iron
Delicates
Shirts
Woollens (hand-washable)
Express
Dark garments / Denim
Cottons arrow
ECO 40-60
Cottons (coloureds)
Cottons arrow
Minimum iron
Delicates
Shirts
Woollens
Express
Dark garments / Denim
Warm air
Short
Anti-crease
Low temperature
Water protection system Watercontrol-System
Safety lock
PIN-Code
Dimensions in mm (width) 596
Dimensions (H x W x D) in mm 850 x 596 x 637
Dimensions in mm (height) 850
Dimensions in mm (depth) 637
Appliance depth in mm with opened door 1055
Weight in kg 94
Total rated load in kW 2.100-2.400
Voltage in V 220-240
Fuse rating in A 13
Frequency in Hz 50
Length of supply lead in m 2
EAN 4002516377221

Washing programs

Optimum care of synthetic fibres
Delicates

Gentle & soft: with the special programme synthetic textiles stay beautiful & keep their shape.


Most gentle treatment of your favourite garments
Woollens

No shrinkage, no felting: Delicate wool fabrics are cared for particularly gently, maintaining their quality.


Business as usual
Shirts

Prevents creasing: reduces creasing and simplifies the ironing of shirts and blouses significantly.


Efficiency and sustainability

Save time and energy during the drying process
Thermo spin

Thermospin reduces the moisture in the laundry before drying takes place, saving time and energy.


Economical, powerful and maintenance-free
ProfiEco motor2,

Powerful and efficient: our inverter drive motors minimise wear, noise and energy consumption.


Quick and economical
Energy efficiency

High energy efficiency class for washing and short running times for drying.


Gentle laundry care

Special programme against fluff
Rinse out fluff

After drying, all fluff is rinsed out and discolourations are prevented.


Protect your clothing in the drum
Honeycomb drum

In our honeycomb drum, your fabrics glide gently without becoming caught or damaged.


Particularly gentle laundry care
PerfectCare technology

Miele PerfectCare technology protects and takes care of your laundry.


User convenience

Add or remove individual items
AddLoad

Add or remove individual items during the wash cycle without interrupting the programme.


Smart connectivity
Domestic appliance networking with Miele@home3,

Connect your washer-dryer to your home network and access its controls through a convenient and intuitive app.


Quality

Tested for 20 years of perfect laundry care4,
Tested for the equivalent of 20 years' use4,

Some car engines are subjected to 3000 hours of tests, but we test continuous performance for up to 10,000 hours.4,


Safety

Safety thanks to an additional sensor
Water Control System (WCS)

WCS monitors the water intake, detects leakages and water in the floor tray.


Drying programs

Business as usual
Shirts

Prevents creasing: reduces creasing and simplifies the ironing of shirts and blouses significantly.


Effective protection against creases and streaks
Denim

Perfect result: Protects your favourite jeans against unsightly, bleached stripes and creases.


Optimum care of synthetic fibres
Delicates

Takes care of synthetic fibres: these look good & stay in shape for longer when dried with this special programme.


Drying in the shortest time
Express

Sometimes things have to be done fast: so small laundry loads are dried quickly and can be used again.


Downloads

User manual
PDF
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads
dwg
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000022/200002227/20000222747.png
Descriptions
WT1 8/5 kg, drawing, straight facia, measures in mm
Installation drawings
Downloads
https://media.miele.com/images/2000022/200002227/20000222748.png
Descriptions
WT1 8/5 kg, drawing, straight facia, measures in mm
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001844/20000184433.png
Descriptions
WT1 8/5 kg, installation drawing, slanted facia or straight facia, measures in mm
Installation drawings
Downloads
https://media.miele.com/images/2000022/200002227/20000222746.png
Descriptions
WT1 8/5 kg, drawing, straight facia, measures in mm
Installation drawings
Downloads
  • 1.GST inclusive
  • 2.Patent EP 2 840 679
  • 3.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the General Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offers at any time.
  • 4.During the development phase of the WT1 washer-dryer series, Miele tested models and core components in 5000 wash and 4000 drying cycles (= 5 wash and 4 drying cycles per week for 50 weeks per year) in various programmes. More: miele.com/20years
  • 5.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the General Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offers at any time.
  • 6.Patent EP 2 365 120

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
