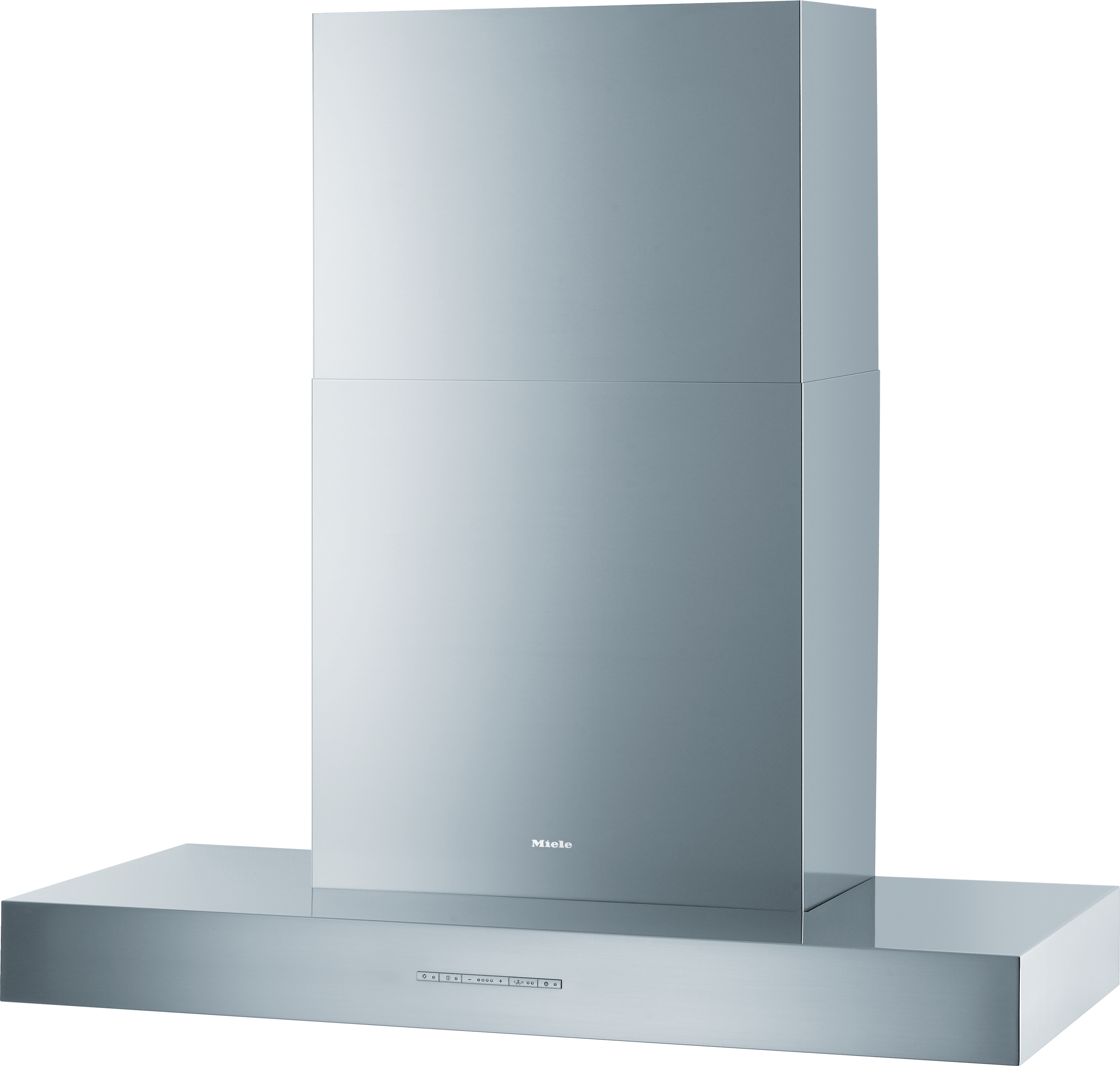

Wall mounted cooker hood

DA 5328 W Puristic Maxime Stainless steel

with energy-efficient LED lighting and light-touch switches for easy use.

Colour:Stainless steel

sale price$7,200.00




Product details

  • Distinctive design - 1200 mm wide stainless steel cooker hood
  • Unique user convenience –
    Con@ctivity
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • Pleasantly quiet –
    Miele Silence package
  • Extremely powerful - 1300 m3/h on the booster setting (extraction)
  • Practical - 5 or 15 minutes automatic
    fan run-on
  • Safe and easy to clean -
    Miele CleanCover
  • Manufactured with great care by
  • Safety Information

Product data sheet

Wall mounted cooker hood
Type of air guide Exhaust air
Colour Stainless steel
Possible in RAL colour (specify colour code when ordering)
Variable height available as customisation on request
Miele@home
Automatic function Con@ctivity
Electronic controls
Controls Light-touch switches with LEDs
Miele@mobile app
Power levels (number without Booster level) 3
Booster levels 1
Run-on time 5/15 min.
Grease filter saturation indicator
Silence package
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply) 4
Number x W 4 x 3 W
Light intensity in Lx 400 lx
Colour temperature in K 3000 Kelvin
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591 550
Air throughput in Level 2 (m³/h) according to EN 61591 750
Air throughput in Level 3 (m³/h) according to EN 61591 1000
Air throughput in Booster level 1 (m³/h) according to EN 61591 1300
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 51
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 59
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 67
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 74
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 38
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 46
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 54
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 61
Safety shut-off
Overall height for vented and external in in. (mm) 740
Overall height for extraction mode and external mode cooker hoods in mm 1170
Canopy width in in. (mm) 1200
Canopy height in in. (mm) 120
Depth of hood canopy in in. (mm) 520
Minimum height above electric hobs in mm 450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
Net weight in kg 45
Length of supply lead in m 1.5
Standard plug fitted
Total rated load in kW 0.602
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm 200
Telescopic chimney
Non-return flap
EAN 4002516064978

What's included

Non-return flap

Features

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.


Performance and convenience as standard
Silence

Efficient and quiet: the fan is effectively insulated with special soundproofing mats.


Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.


User convenience

Automatic fan run-on
Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.


Countdown time conveniently in view
Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.


Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.


Safety

Always on the safe side
Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.


Downloads

Operating instructions/Installation instructions
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000015/200001511/20000151124.png
Descriptions

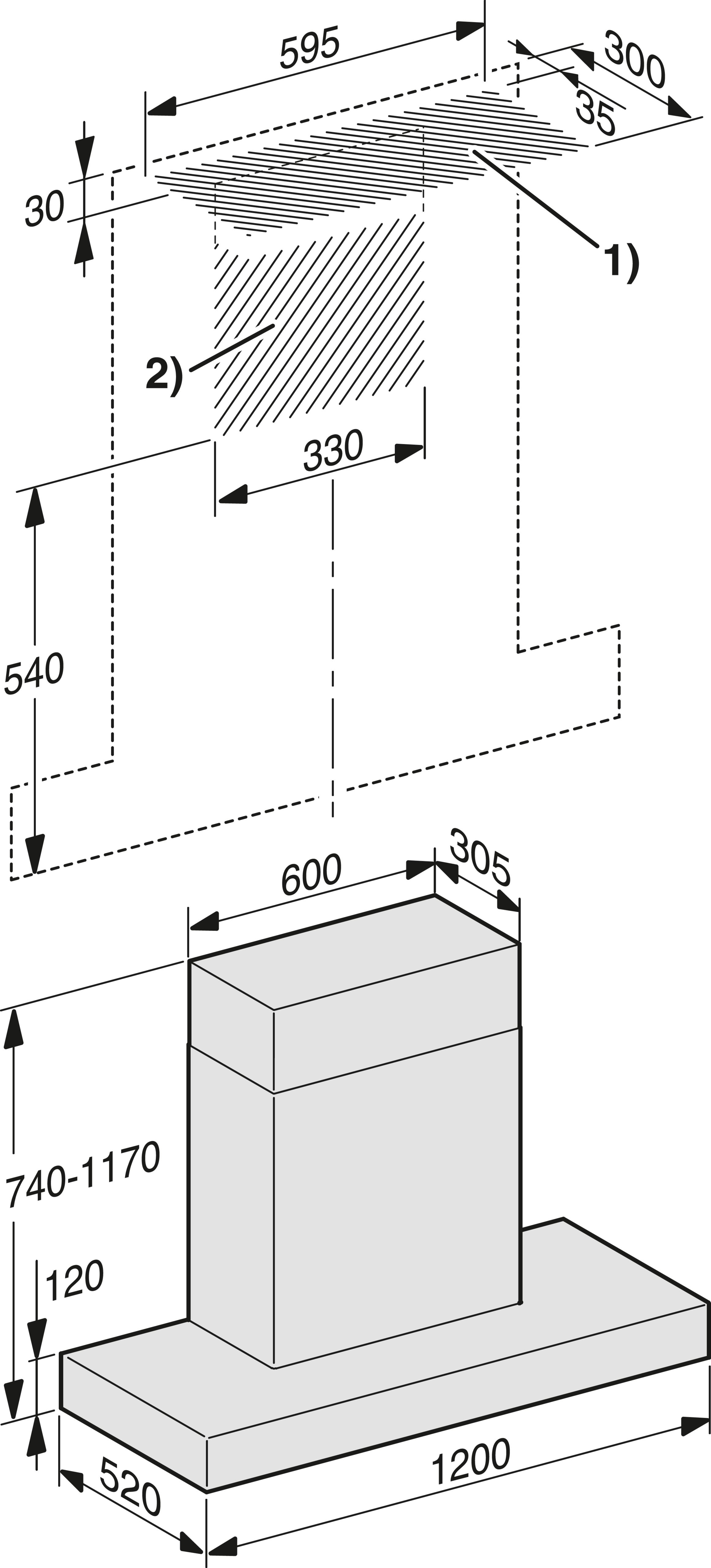

DA 5328 W Installation drawing (C)
1) and 2) Shaded area for cent cut-out
