Miele - DA 4228 W Puristic Plus Stainless steel – Cooker hoods - 1
Miele - DA 4228 W Puristic Plus Stainless steel – Cooker hoods - 1

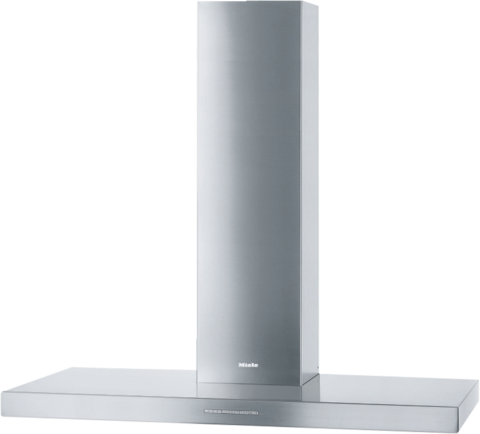

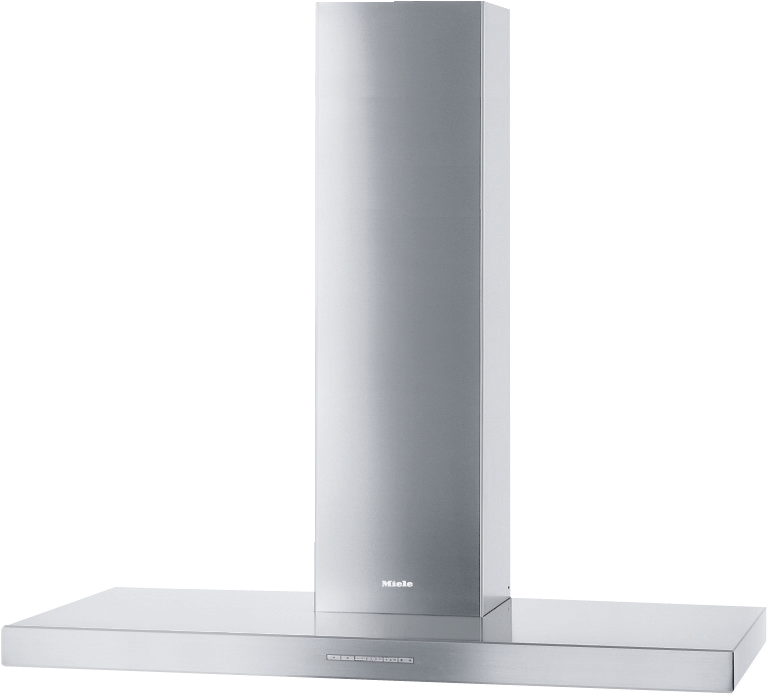

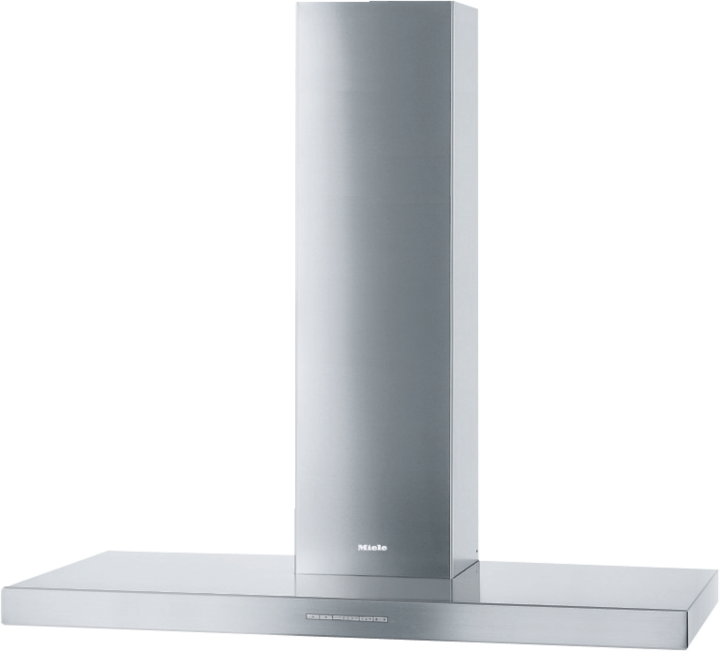

Wall mounted cooker hood

DA 4228 W Puristic Plus Stainless steel

with energy-efficient LED lighting and light-touch switches for easy use.
Colour:Stainless steel
sale price$6,200.00




Product details

  • Timeless design – stainless steel canopy 1198 mm wide
  • Unique user convenience –
    Con@ctivity
  • Powerful – 870 m3/h in Booster level
  • Pleasantly quiet –
    Miele Silence package
  • Safe and easy to clean -
    Miele CleanCover
  • Manufactured with great care by
  • Safety Information

Product data sheet

Wall mounted cooker hood
Type of air guide Exhaust air
Colour Stainless steel
Miele@home
Automatic function Con@ctivity
Electronic controls
Controls Light-touch switches with LEDs
Miele@mobile app
Power levels (number without Booster level) 3
Booster levels 1
Run-on time 5/15 min.
Grease filter saturation indicator
Silence package
Easy-to-clean canopy interior – CleanCover
ECO motor (DC motor)
PowerManagement system
Number of dishwasher-safe stainless steel grease filters (10-ply) 4
Number x W 3 x 3 W
Light intensity in Lx 440 lx
Colour temperature in K 3500 Kelvin
Dimmer function
Fan power (m³/h) 990
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591 310
Air throughput in Level 2 (m³/h) according to EN 61591 460
Air throughput in Level 3 (m³/h) according to EN 61591 630
Air throughput in Booster level 1 (m³/h) according to EN 61591 870
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 47
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 56
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 64
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 72
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 32
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 41
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 49
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 57
Safety shut-off
Overall height for vented and external in in. (mm) 685
Overall height for extraction mode and external mode cooker hoods in mm 1005
Canopy width in in. (mm) 1198
Canopy height in in. (mm) 62
Depth of hood canopy in in. (mm) 500
Net weight in kg 27
Length of supply lead in m 1.5
Standard plug fitted
Total rated load in kW 0.239
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm 150
Telescopic chimney
Combination with WiFi-enabled Miele hob recommended
Non-return flap
Adapter to reduce ducting diameter from 150 mm to 125 mm Ø
EAN 4002516021612

What's included

Non-return flap
Adapter to reduce ducting diameter from 150 mm to 125 mm Ø
Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

Performance and convenience as standard
Silence

Efficient and quiet: the fan is effectively insulated with special soundproofing mats.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

The heart of every cooker hood
ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.

Efficiency and sustainability

The heart of every cooker hood
ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.

Features

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

Performance and convenience as standard
Silence

Efficient and quiet: the fan is effectively insulated with special soundproofing mats.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

User convenience

Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Automatic fan run-on
Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.

Countdown time conveniently in view
Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.

Safety

Always on the safe side
Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

Matching products and accessories

Electronic module
DSM 406

Electronic module

With additional functionality, for hoods with Con@ctivity 2.0/3.0.

$276.00
Roof vent
DDF 125

Roof vent

for extraction.

$1,019.00
Wall box
DMK 150-1

Wall box

for extraction.

$793.00
Reducing collar
DRS 15-12

Reducing collar

for reducing the exhaust air vent cross-section.

$51.00
Condensation trap
DKS 150

Condensation trap

Prevents condensation from re-entering the cooker hood canopy.

$361.00
Aluminium vent hose
DAS 150

Aluminium vent hose

flexible vent duct.

$320.00
Silencer
DASD 150

Silencer

for reducing air and motor noises.

$298.00
SteelCare stainless steel care product, 250 ml
GP CA ST 0252 L

SteelCare stainless steel care product, 250 ml

For a smooth, matt, clean stainless steel surface.

$45.00
Multi-purpose microfibre cloth, qty 1
GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

$26.00
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$53.00

Downloads

Operating instructions/Installation instructions
PDF
Downloads
Mounting plan
PDF
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000010/200001035/20000103513.png
Descriptions

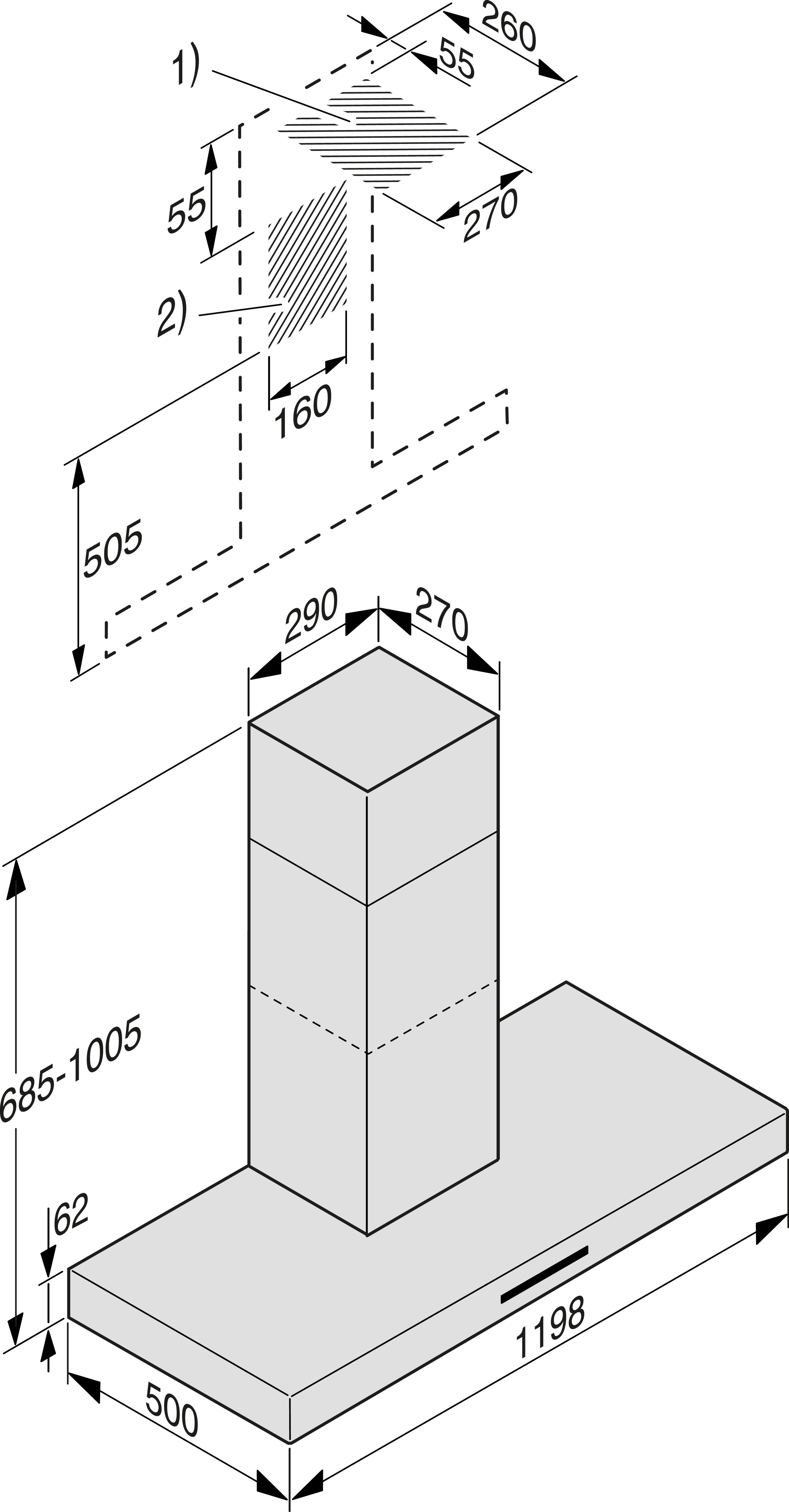

DA 4228 (Installation drawing)
1) and 2) Installation cut-out
