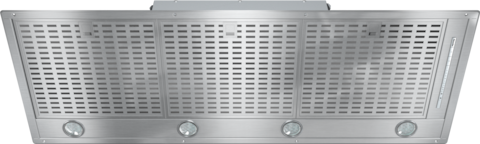

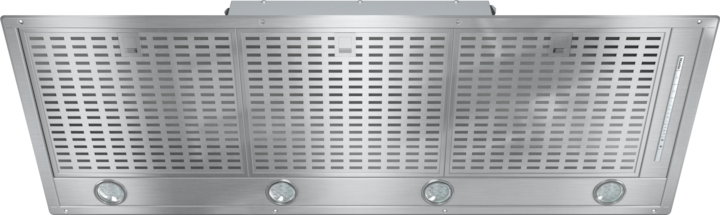

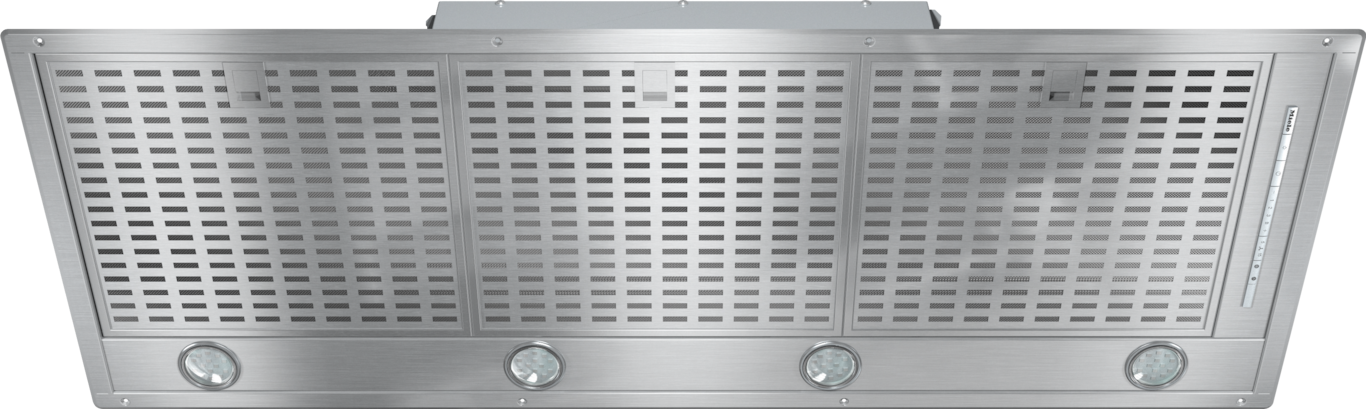

Extractor unit

DA 2518 Stainless steel

with energy-efficient LED lighting and light-touch switches for easy use.

Colour:Stainless steel

sale price$5,000.00

GST inclusive



Product details

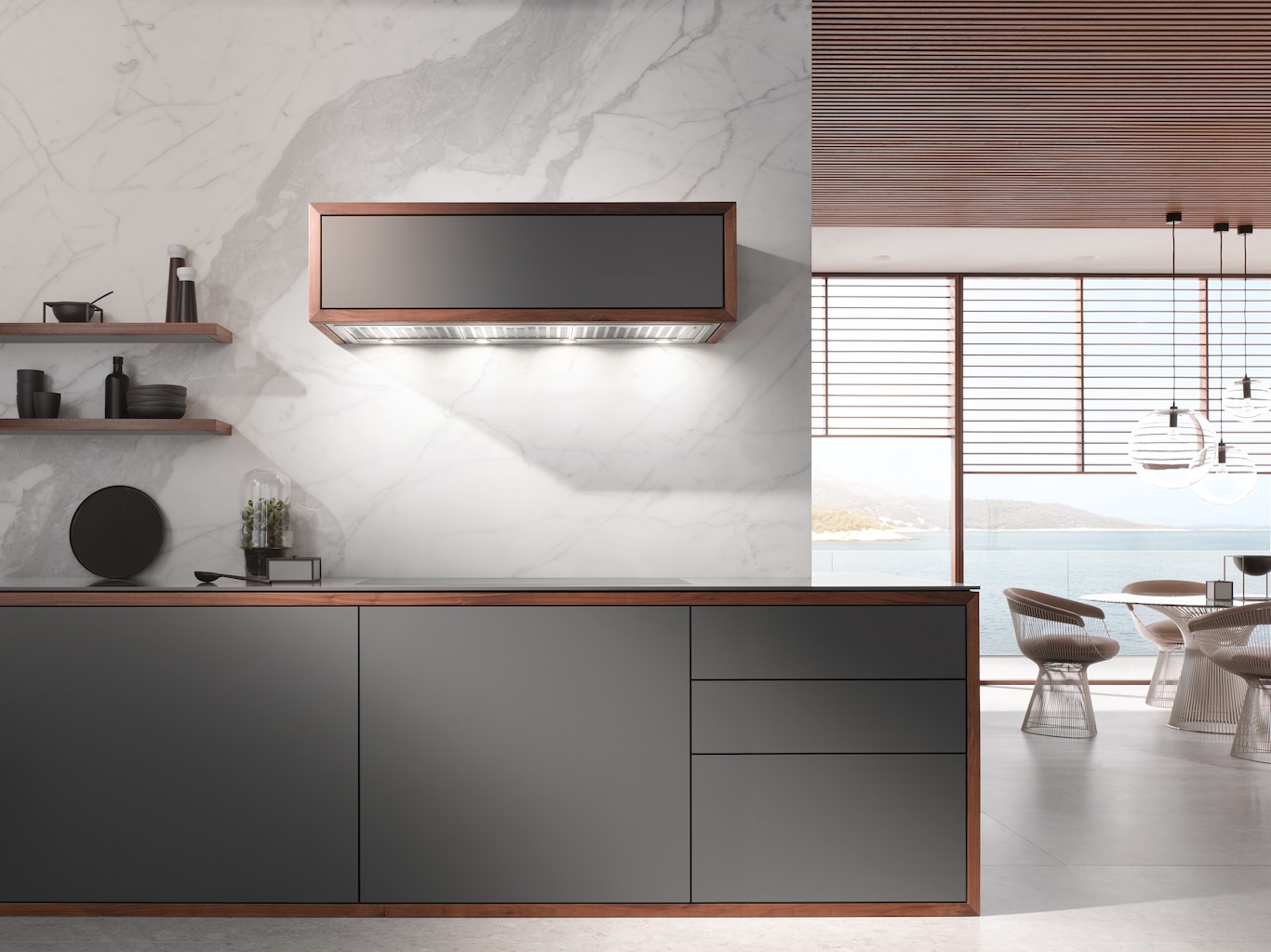

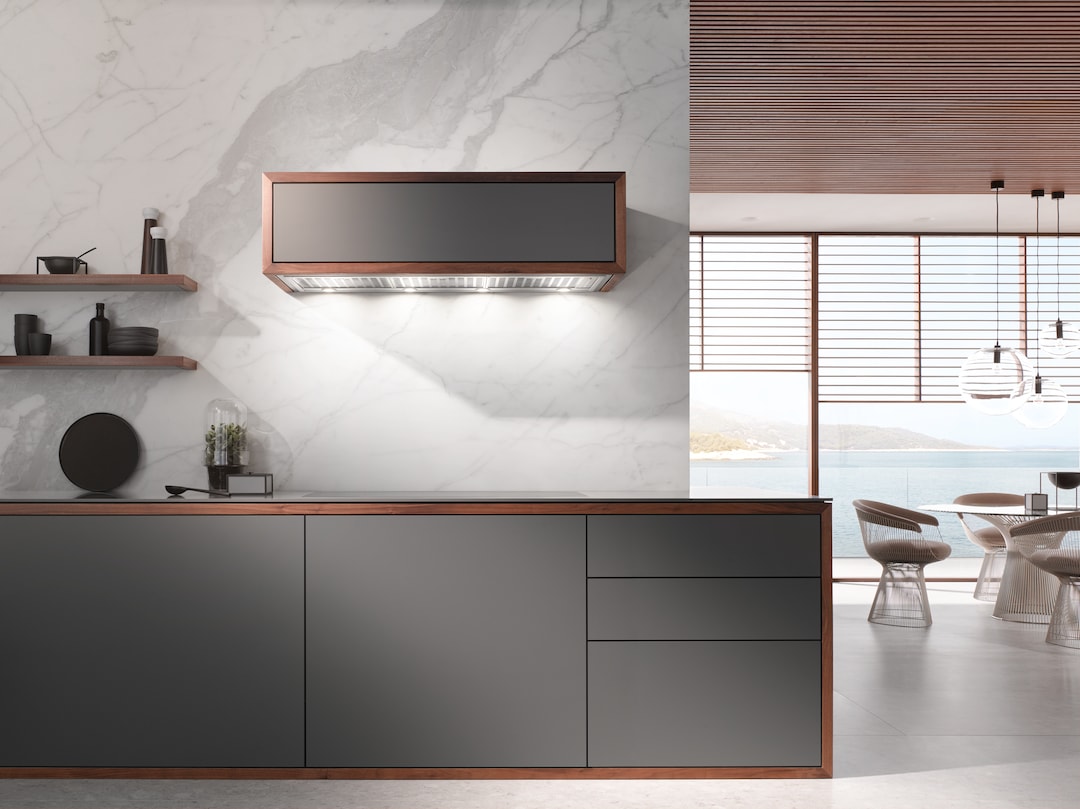

  • Customised kitchen design - fully integrated in 1102 mm width
  • Unique user convenience –
    Con@ctivity
  • Powerful – 785 m3/h in Booster level
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • Safe and easy to clean -
    Miele CleanCover
  • Manufactured with great care by
  • Safety Information

Product data sheet

Integrated extractor
Type of air guide Can be retrofitted
Recirculation conversion kit (order separately) DUU 151
Active charcoal filter (order separately) DKF 15-P
Colour Stainless steel
Miele@home
Automatic function Con@ctivity
Electronic controls
Controls Light-touch switches with LEDs
Miele@mobile app
Power levels (number without Booster level) 3
Booster levels 1
Run-on time 5/15 min.
Grease filter saturation indicator
Active charcoal filter saturation indicator
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply) 3
Number x W 4 x 3 W
Light intensity in Lx 520 lx
Colour temperature in K 3000 Kelvin
Fan power (m³/h) 890
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591 290
Air throughput in Level 2 (m³/h) according to EN 61591 425
Air throughput in Level 3 (m³/h) according to EN 61591 575
Air throughput in Booster level 1 (m³/h) according to EN 61591 785
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 48
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 55
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 63
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 70
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 35
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 42
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 50
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 57
Air throughput in Level 1 (m³/h) according to EN 61591 250
Air throughput in Level 2 (m³/h) according to EN 61591 375
Air throughput in Level 3 (m³/h) according to EN 61591 500
Air throughput in Booster level 1 (m³/h) according to EN 61591 625
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 59
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 65
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 70
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 74
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 46
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 52
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 57
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 61
Safety shut-off
Canopy width in in. (mm) 1102
Canopy height in in. (mm) 50
Depth of hood canopy in in. (mm) 402
Net weight in kg 14.3
Length of supply lead in m 1.5
Standard plug fitted
Total rated load in kW 0.307
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm 150
Combination with WiFi-enabled Miele hob recommended
Non-return flap
EAN 4002516011408

What's included

Non-return flap

Features

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.


Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.


User convenience

Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.


Automatic fan run-on
Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.


Countdown time conveniently in view
Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.


Safety

Always on the safe side
Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.


Downloads

Operating instructions/Installation instructions
PDF
Downloads
Mounting plan
PDF
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads
dwg
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000012/200001284/20000128441.png
Descriptions
DA 2518 (Installation drawing)
1) Vent connection alternatively to rear, You will find further detailed measurements in the instructions for use!
